Bo-Katan - The Mandalorian - Season 2

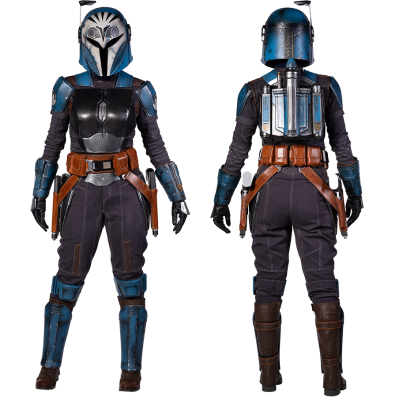

Model MW-86110, Photo by John Dijkstra
Description: Bo-Katan: The Mandalorian
Prefix: MW
Detachment: Bounty Hunters Guild
Context: Bo-Katan: The Mandalorian Season 2

Bo-Katan of Clan Kryze is the last of her line. Bo served as Lieutenant to Pre Viszla in the Death Watch during the Clone Wars era. Bo is a fierce, proud Mandalorian Warrior; cunning and deceit are some of her strongest attributes. As previous Mand'alor and keeper of the Darksaber, she hopes to one day return her home planet of Mandalore to its rightful place in the galaxy once again.

This is a visual guide used for 501st costume approval, not a how-to for construction. Construction details are found at the costume's Detachment website. Measurements provided here are are generalized, and not criteria for approval. All 501st costumes are proportionate to the wearer in terms of size, fit, and scale. During evaluation, both text and images (CRL and Reference) must be considered. When in doubt about a feature of a submitted costume, GMLs should post questions in the Legion forum's DL/GML peer review section.

Required Costume Components

The following costume components are present and appear as described below. For 501st membership only the requirements in black need to be met. This Detachment defines additional, optional costuming details listed in blue and red. Please visit the Detachment website for more details on these options.

General Construction Notes

All components should closely match the Bo Katan The Mandalorian Season 2 Color Palette.
Color palette is intended for reference in building, and will only be used in exacting measurement by Detachment for Infamous Level approval. A Basic level approval is only required to be similar, not exact.
All Armor is constructed from a durable material such as Metal, Fiberglass, Resin, Sintra, HIPS, PVC, PLA, Vac-formed ABS, or similar. EVA foam & similar materials are not appropriate.
All armor pieces, unless otherwise noted, are worn with no visible means of attachment.
Unless stated otherwise, armor has a return edge of at least ? inch (3.1mm), giving the appearance of thickness and depth.
Armor is scaled proportionately to the wearer.
3D printed components have no visible print lines and are smooth for a realistic appearance.
Please Note: All damage must be 100% screen accurate if individual wishes to obtain Infamous (Level 2) approval from Detachment.

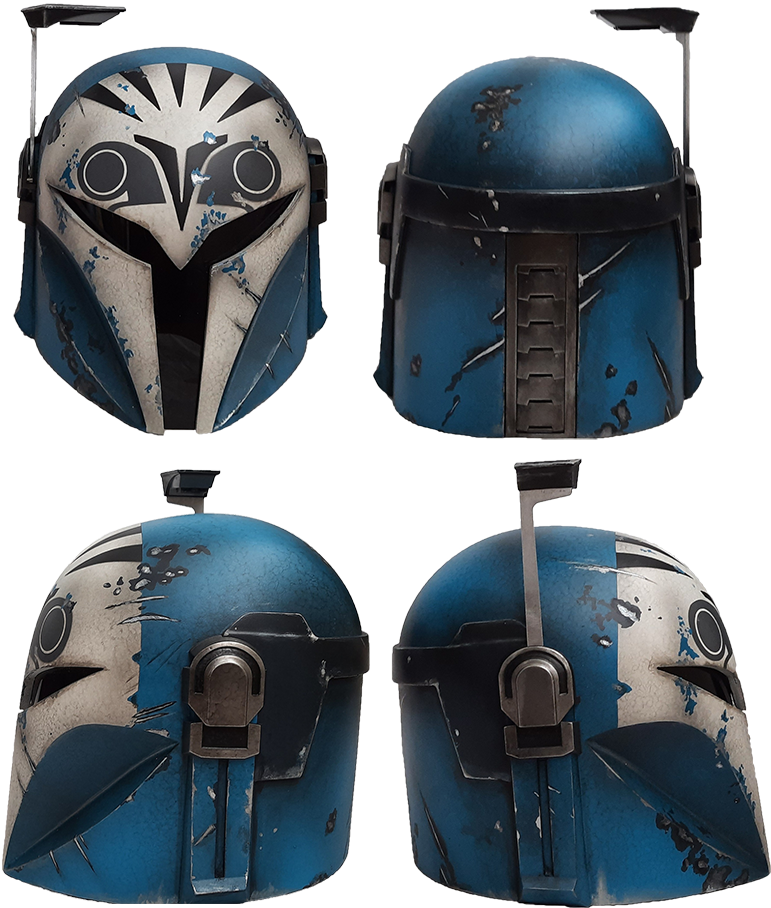

• �Nite Owl� Version with dark smoke or dark green T-visor.
• Rear of the dome and back of the helmet is painted blue, similar to PMS 2150-C.
• Rear vent is rectangular in shape and features 7 rows of inset slats.
• The Uppermost slat is only half-height
• Each slat face is slightly curved and features a rectangular section cut out from the bottom edge.
• Each slat overlaps the one below it.
• Forehead and front mandibles are painted off-white.
• Upper cheeks and rear band details are slightly darker blue.
• Lower cheeks are the same blue as the helmet dome.
• Earcaps are symmetrical, with the right side housing the rangefinder stalk.
• Lower earcaps match dome blue.
• Top of earcaps are metallic silver.
• Inverted �U� section at top of earcap detail and recessed rectangle below main cap detail painted matte charcoal black in the recesses.
• Rangefinder stalk is metallic silver with a charcoal black topper.
• Topper face features a debossed oval slot detail with 2 circular recesses aligned with the top edge.
• Translucent lower piece features black framed window (viewfinder).
• Front of dome has the following features:
• Five tapered charcoal black dart lines, which angle toward center.
• The �Nite Owl� �V� Symbol is on center of the forehead in charcoal black.
• On either side of the �V�symbol are light grey circular details, mimicking the look of owl eyes.
• Helmet weathering closely matches patterns seen on screen.

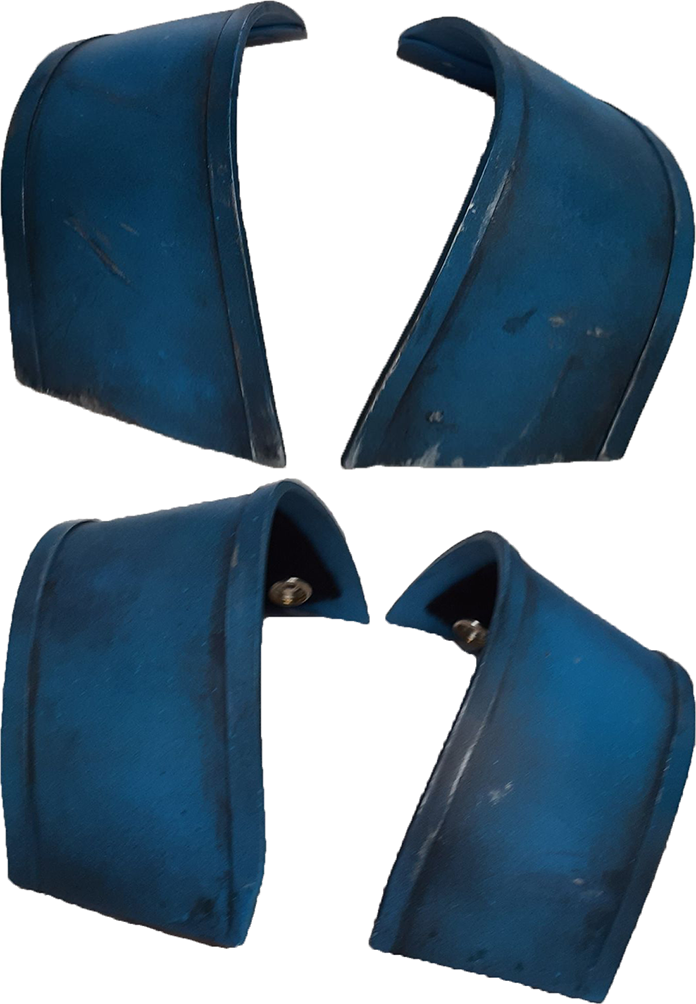

• Armor is painted in the same color scheme as the helmet.
• Long edges feature raised ridges and an angled front edge that is parallel with the top of the Chest Armor.
• Straps insert into slots on the Back Armor, giving the appearance they are holding the Jetpack on the wearer.
• Outer corners of Straps match up and align with upper outer corners of Chest Armor.
• Straps properly fit the curvature of the wearer�s shoulders and sit flush against the body.

• Armor is painted in the same color scheme as the helmet.
• Armor features a stepped lip surrounding the perimeter of the part, with the exception of the bottom edge.
• Main face has two slight edges running top to bottom that divide the part into three sections.
• �Nite Owl� Symbol is painted with matte charcoal black and off-white background

• Armor may be one or two-part construction.

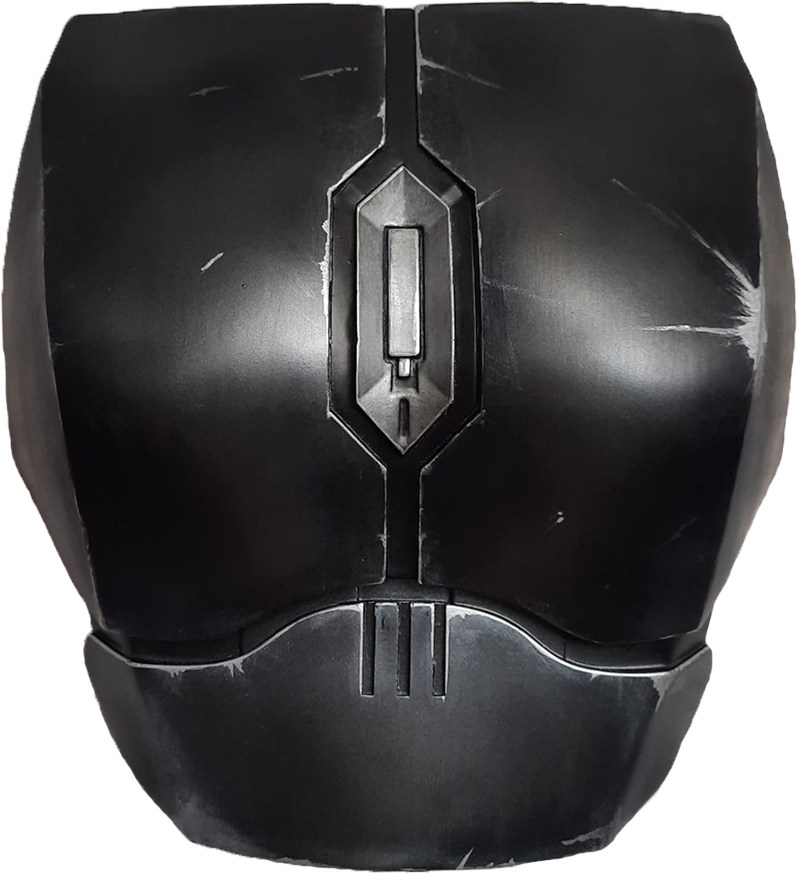

• Upper chest armor consists of two symmetrical breastplates connected by a central recessed strip.
• Recessed strip features a debossed diamond detail.
• Diamond features 6 edges.
• Face of the diamond tapers in towards the wearer
• Features a raised rectangular detail running vertically.
• Chest armor attaches securely to the flak vest without any visible attachment method.
• Upper edge of the chest armor sits 1�2 inches (25-50mm) below the neckline.
• The bottom edge of the armor sits just below the bottom edge of the flak vest.
• The bottom edge of the armor is approximately in line with the wearer�s elbow.
• Painted dark grey, with light grey weathering damage is present revealing a metallic silver base.
• A lip on the top of the abdominal plate sits under the chest armor.
• Abdominal plate has 3 slots on upper front edge, and a rear recessed section that extends up under the bottom of the chest plate.

• Armor fits the curvature of the wearer & extends from upper shoulder blades to just above the bottom of the Flak Vest & extends around the lower rib cage.
• Bottom edge features a trapezoidal cutout.
• Armor has two rectangular slots over the shoulder blades to allow for the shoulder straps to feed through.
• Back Plate accommodates the Jetpack
• Armor is painted in the same color scheme as the chest armor.

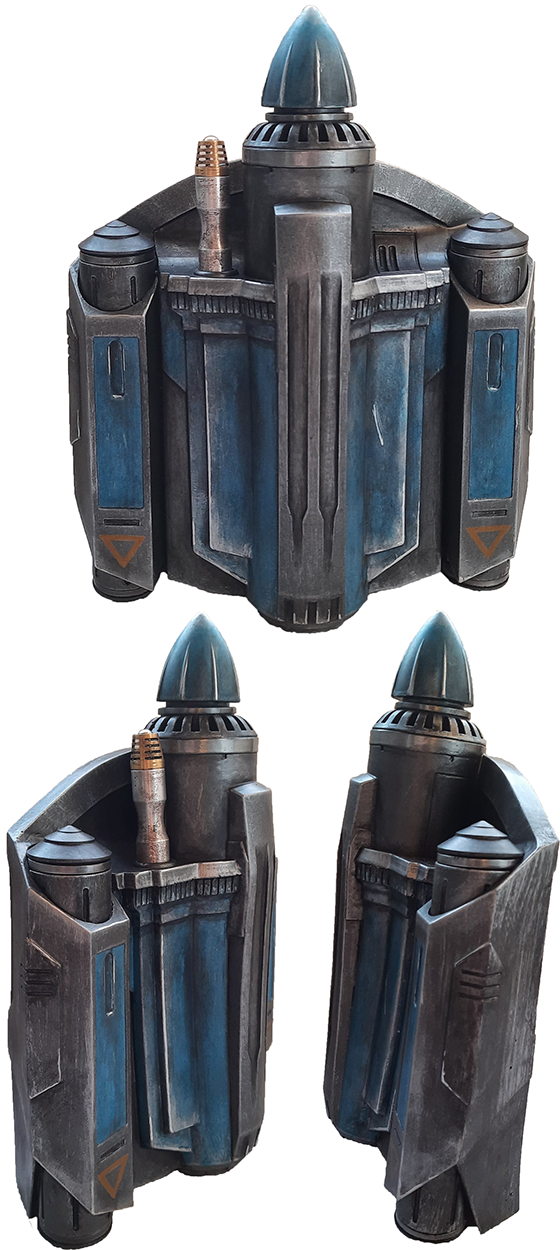

• Jet pack has the following main components: one center tank and two side fuel tanks, �piano keys� stretching horizontally at the top of the main body on each side of the raised center strip, one center missile & two thrusters cap.
• Colors are grey, silver, dark grey, blue and pale yellow Color Palette.
• Main rocket body features a raised rectangle platform that is grey with an angled top edge, two channels that start at the ledge above the �piano keys� and taper away towards the bottom where the bottom edge bends inward and features 3 recessed rectangular grooves evenly spaced from each other. The platform is thicker at top and tapers toward the bottom.
• The angled surfaces below the platform on the center tank are painted blue.
• Rocket topper is painted in the same color scheme as the helmet with ridged details.
• tapered ring under the rocket topper features slots.
• A beacon is present on the left side of the platform (Silver with a brass color top)
• Side fuel tanks have the following features:
• Short tapered tops with 3 rings.
• Rectangular blue sections with a dark grey recessed slot towards the tops.
• Horizontal recessed slots below the blue rectangles and above the pale yellow-gold upside down triangles.
• Outer sides feature raised trapezoidal shapes with three recessed slots at the top.
• Inner cylindrical body of fuel tanks feature raised ridges on the bottom and recessed on the tops.
• Upper back arch of Jet Pack behind the rockets has a thick raised lip.
• Bottom inside of center rocket has exhaust vent grill that is dark grey.
• Single ring accents are painted at the top and bottom of each side rocket and the top of the center rocket to appear silver metallic.
• Jet Pack securely attaches to Back Armor with no visible means of attachment.

• Armor is painted in the same color scheme as the helmet.
• The top of the gauntlet is flat with a launcher detail and two rectangular profiles on either side.
• Launcher is comprised of a Black & Silver half-cylinder detail featuring ribs, the front of the half-cylinder features a copper colored cone with 12 holes.
• Top of the launcher features rectangular detail painted in the same color scheme as the helmet.
• Keypad features 4 horizontal rows of 5 circular buttons.
• Inner & outer face features two small rectangular recesses centered above the parting line.
• Front edge on the lower clamshell features 5 rectangular groves.
• Rear of the Gauntlet features a central rectangular recess.
• Gauntlet is a clamshell-style without any visible closure methods.
• The center 3 buttons of each row of the keypad are slightly larger than the outside buttons.

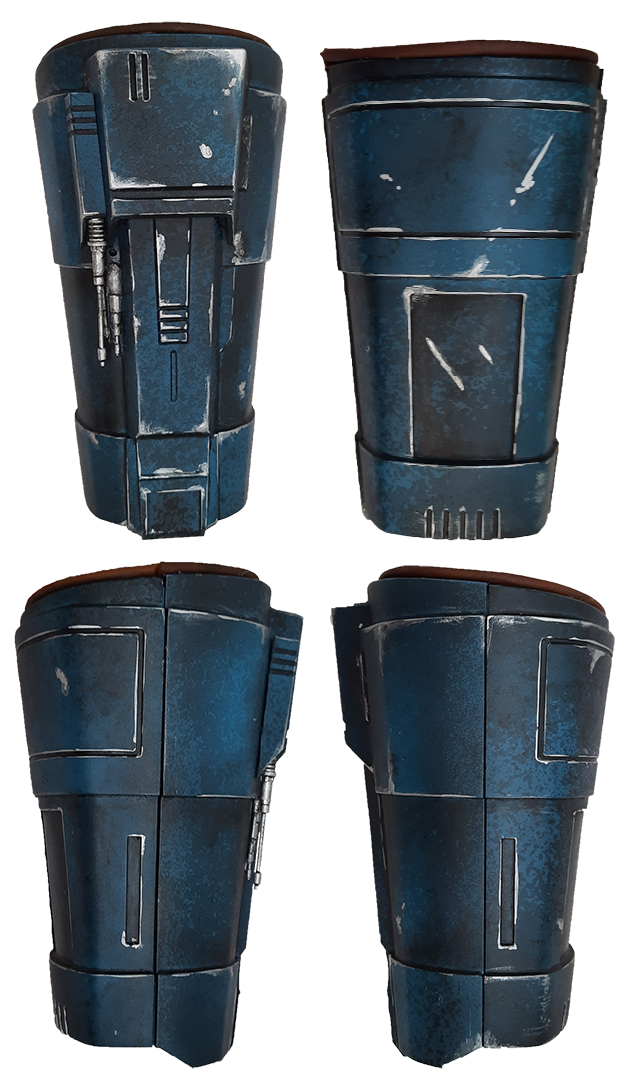

• Armor is painted in the same color scheme as the helmet.
• Armor follows the contours of the forearm.
• Features a dark brown leather or leather-like cuff extending from the top edge approximately � inch (6mm).
• The top of the gauntlet consists of a raised trapezoidal shape. The shape has a hollow appearance with a narrower rectangular profile extending out with angled edges and a narrow rectangular detail on top.
• Top Trapezoidal shape features two grooves situated toward the outer side.
• Outer face features protruding profile near the top edge with 3 grooves.
• The flamethrowers detail protrudes from the right side of center profile.
• Flamethrowers consist of a stepped cylindrical shapes with the narrowest part towards the wearer�s wrist.
• A recessed band in the center of the gauntlet is present
• Gauntlet is clamshell style without any visible closure methods.
• Elongated platform functions as housing for the hidden Knife seen onscreen, but is no-functioning otherwise.

• Armor is symmetrical with eight sides with angled corners and two bent faces.
• Armor ends near the knuckles.
• Plates are light to medium grey with darker weathering.
• A slight curvature over the back of the hand featuring three evenly spaced slots
• Bent face nearest the thumb features another slot.
• Plates secure to the gloves without any visible means of attachment.
• An elevated rectangular section appears at wrist end.
• Armor features a recessed area with a trapezoidal detail cut on the knuckle edge
• Features a dark brown leather or leather-like tab extending from Knuckle edge approximately ? inch (3mm).

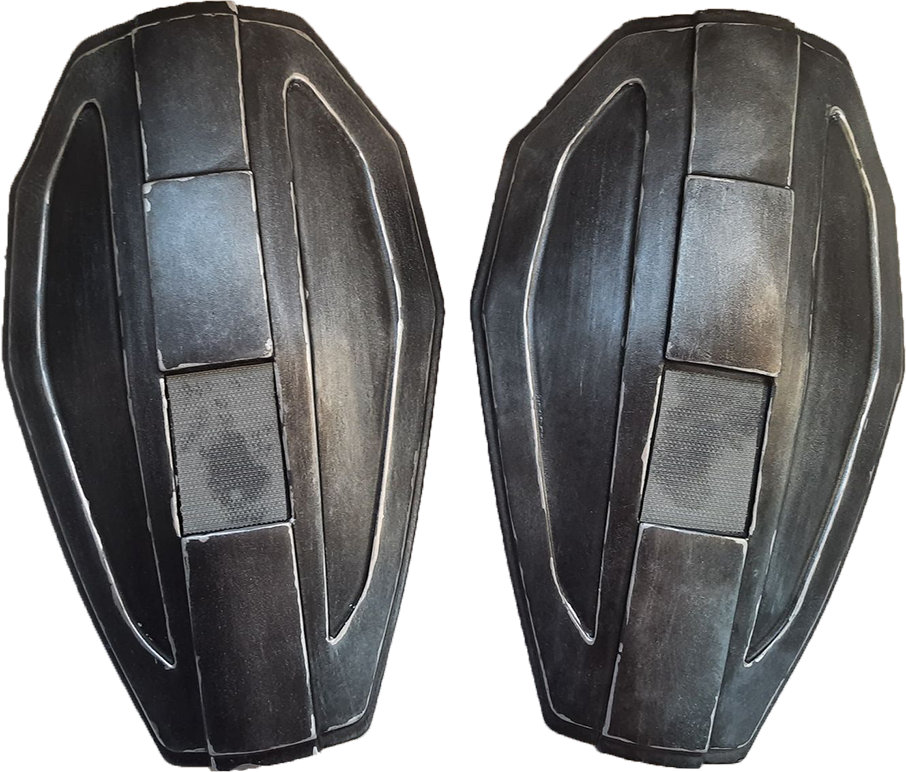

• Armor is painted in the same color scheme as the chest armor.
• Features a lip on the top edge which terminates on the underside of the belt.
• Armor has a visible curve to match the wearer�s body and extends approximately halfway down Flight Suit�s zipper fly.

• Armor extends from just below the wearer�s hip bones to approximately mid-thigh.
• Armor is shaped similarly to an inverted teardrop, with flat cuts both top & bottom.
• Armor is symmetrical with a vertical raised ridge from top to bottom, approximately 1.75 inches (44mm) wide.
• Armor features a raised rectangular profile offset from the edge.

• Armor is painted in the same color scheme as the helmet.
• Armor is symmetrical.
• Armor is patterned to resemble a rotated �E� shape.
• Front segment is noticeably thicker than the sides.
• Front segment tapers from top to bottom with the following features:
• An angled lower & upper edge.
• A recessed trapezoidal detail that tapers with the shape of the armor edge.
• There is a vertical T-profile shape on the outer segment edge of knee.
• Armor is secured by a black elastic strap across the back of the knees that runs through the fabric tunnel in the Flight pants.
• Armor matches the contour of the wearer�s knees

• Armor is painted in the same color scheme as the helmet.

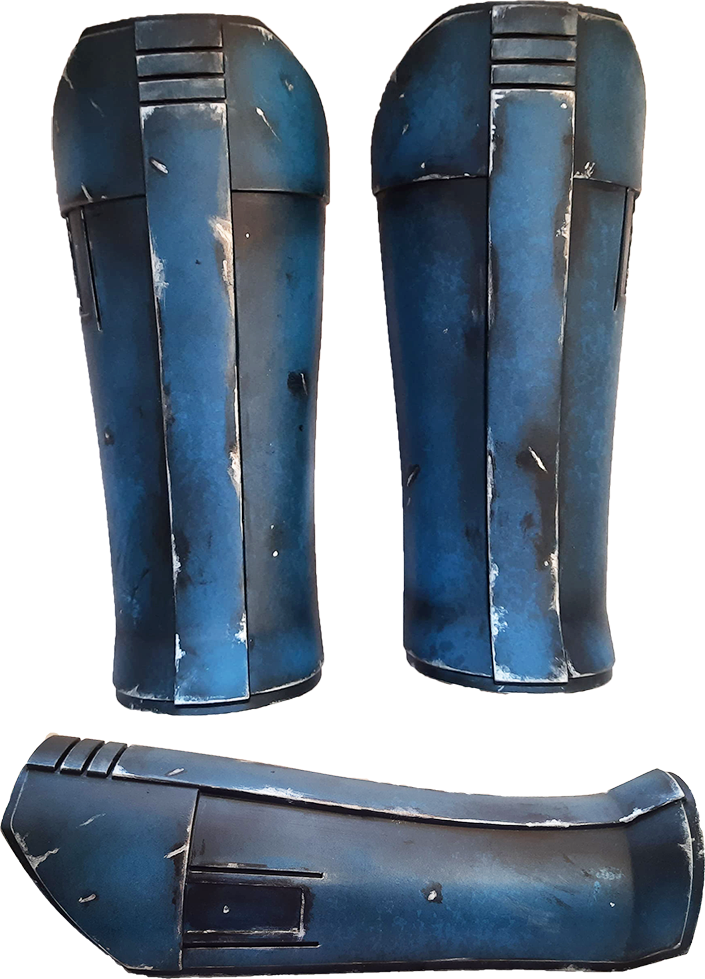

• Armor extends from below the knee to the top of the boot.
• Lower edge flares out to follow the contour of the boot
• Armor features a stepped lip surrounding the perimeter of the part.
• Armor features a raised section on the top part of the armor
• Armor features a central vertical raised ridge that tapers from top to bottom with three groves near the top edge.
• Armor is curved to fit the wearer and does not flare out.

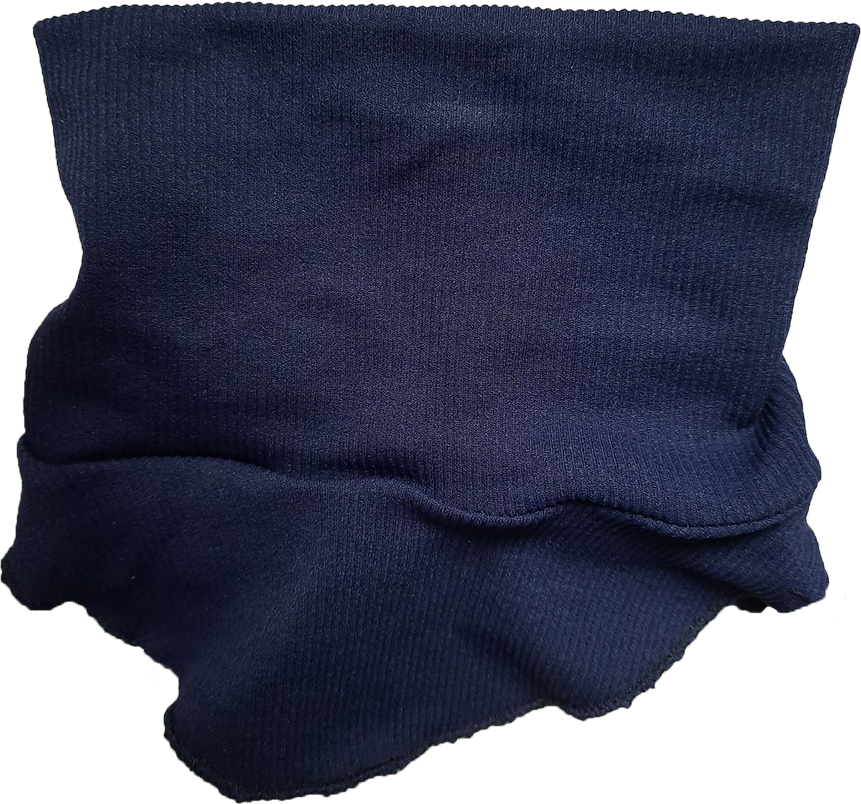

• Seal made of stretch ribbed jersey fabric and is Charcoal Black/Dark Navy.
• Ribbing runs vertically
• Seal is long enough to extend to base of skull and under chin with noticeable bunching.
• May be attached to Flight Suit to prevent up-creep.

• Flak Vest is made of cotton/cotton blend fabric similar to cotton twill, carbon gray in color and stops approximately 1 inch (25mm) above the bottom of the Ab Plate see Color Palette.
• All brown details are made of supple leather
• All topstitching is grey unless otherwise specified.
• Vest is well-tailored to the wearer and features a rear zipped closure with cover strip approximately 1.5 inch (38mm) wide
• Coverstrip has 2 vertical stitch lines down the center which segment flap into thirds.
• Vest bottom features a triple top stitch.
• Side Seams have a double topstitch.
• A horizontal double topstitched seam is present at the same level as the abdominal plate meets the breastplate.
• A horizontal double topstitched seam is present across the rear of the vest between the upper edge of the armholes.
• Neck & Arm openings feature brown leather or leather-like edging with no visible stitching.
• 8 centered vertical topstitched details are present on the front of the vest.
• From the front center of the armholes, a recessed brown leather or leather-like panel is present featuring approximately 7 ribs with matching thread.
• The panels angle downwards towards the center of the chest forming a �V�.
• Top and bottom edges of the panels feature a double topstitch.
• Shoulders feature leather or leather-like panels featuring approximately 14 ribs sewn with matching thread & bound seam with visible Off-White topstitching.

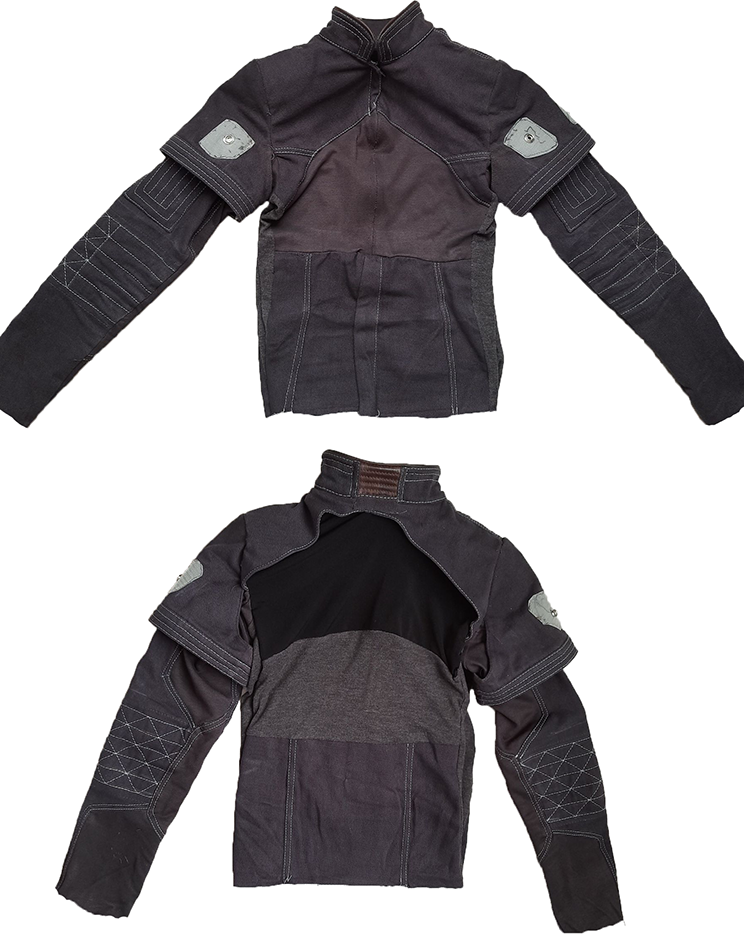

• Flight Jacket is made of cotton/cotton blend fabric similar to cotton twill, carbon gray in color, see Color Palette.
• All topstitching is light grey unless otherwise specified.
• Jacket and pants can be one piece in construction.
• Topstitch details to align between jacket and pants and give the appearance of being one piece when worn.
• On the back of the jacket, a straight diagonal stitched seam runs from the bottom of the armhole opening, up over the shoulder blades towards the center of the neck.
• Collar:
• The Collar is Mandarin style approximately 2 inches (51mm) tall.
• Brown leather or leather-like piping is featured on the top edge.
• Collar opening is rounded and has a visible gap of approximately 1 inch (25mm).
• Back of Collar features a recessed brown leather or leather-like panel (approximately 2 inches (51mm) wide), with 6 horizontal ribs with matching thread.
• The left and right edges of the rear panel feature a double topstitch.
• The top and front opening of the Collar Edge features a triple topstitch detail.
• The collar joins the jacket with lapped seam & visible topstitch.
• Short Sleeves:
• Short sleeves extend to the mid-bicep and have an additional layer of fabric at the bottom to form a thick cuff.
• The top edge of the cuff has a lapped seam.
• There are 4 topstitch lines approximately ? inch (9.25mm) apart, around the circumference of the cuffs.
• Armpit of the Short sleeves does not attach to the main Flight jacket body, to allow for movement.
• Short Sleeves are not attached at the lower half, diverging off the suit midway down from the shoulder. Shape curves downward to just above the cuff, and then returns back to attach again at other side.
• Long Sleeves:
• Long Sleeves feature �V� shaped, double-topstitched seams at the wrist and bicep ends of the underside of the sleeve. �V� shapes are joined at their points by a straight line.
• Along the straight line on the inner bicep are 6 single topstitched lines that extend to elbow, where cross-hatched detail begins.
• Exterior bicep features a rectangular patch with 2 single topstitched detail lines around the circumference and an inner rectangular detail with 3 lines evenly spaced inside.
• Patch extends and terminates hidn under the Short Sleeve.

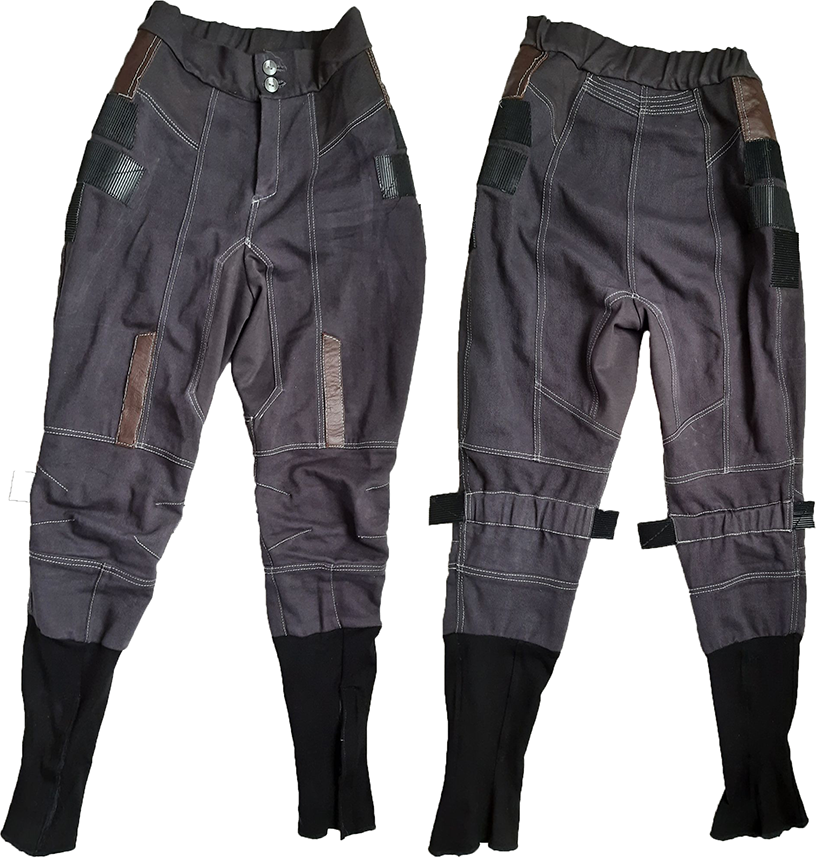

• Flight Pants is made of cotton/cotton blend fabric similar to cotton twill, carbon gray in color, see Color Palette.
• Pants feature hidden zippered closure on the front with the open edge on the right, start at an angle mid-crotch, and end under the wearer�s belt.
• The upper front of the pants features a second layer that begins at the waistline and ends above the knees featuring double topstitched details.
• A six-sided �diamond-shaped� crotch gusset detail is formed by the second layer on the front of the pants.
• The double topstitch detail running on the front of the leg, extends upwards onto the torso section.
• The rear of the pants features a similar six-sided �diamond-shaped� crotch gusset, with double topstitching on the main suit layer.
• The rear lower inner thighs feature a second layer with double topstitched edges, extending from the middle of the leg to the inner seam.
• Layer top angles downward from rear seam in alignment with the bottom edge of the crotch diamond detail, so it aligns with front layer at the inseam.
• Layer bottom matches up with bottom of front patch to end above knees.
• The backside features double-topstitched seams:
• One originates at the top of the crotch gusset and extends upward to the waist.
• One appears on each leg, starting at the bottom of the layer patches and extending upward to the middle of the arm holes on the top of the Flight Jacket.
• In alignment with where the Thigh Armor will be worn, appear double-topstitched seams extending at a downward angle from the leather hip patches, over the rear leg seams to meet at the center seam. The same detail is on the front between the hip patches and the center thigh seam.
• NOTE: A waist seam may be present.
• A leather or leather-like hip patch the width of the top flat section of the Thigh Armor and the same color as the Girth Belt, extends from under the Thigh Armor to under the Girth Belt.
• On the outside of the �upper knee to torso� seams, are dark brown suede leather patches, extending upward, stopping around the bottom of the crotch (slightly above bottom of Thigh Armor) and attached with single topstitching.
• Starting on outer side of the �upper knee to torso� seams (at approximately the middle of the visible zipper fly below the Cod), are double-topstitched seams that angle slightly upwards to across where the top of the Thigh Armor rests. Identical seams on the back sides angle down to terminate at the back �upper knee to torso� seams.
• Above the Shin armor is another horizontal double topstitched seam.
• A single topstitch detail line runs down the middle of the shin, behind the Shin Armor, which originates from the double-topstitched seam above the Shin Armor.
• Between the upper and lower knee seams is a fabric tunnel made from the same cotton twill as the suit that the 1.5 inches (40mm) elastic used to secure the knee armor runs through.
• Fabric tunnels are single-stitched, except where they meet side seams, they are double-topstitched.
• Side Seams appear on the outside of the legs from the bottom cuff to the underarm gusset and feature a double topstitched seam.

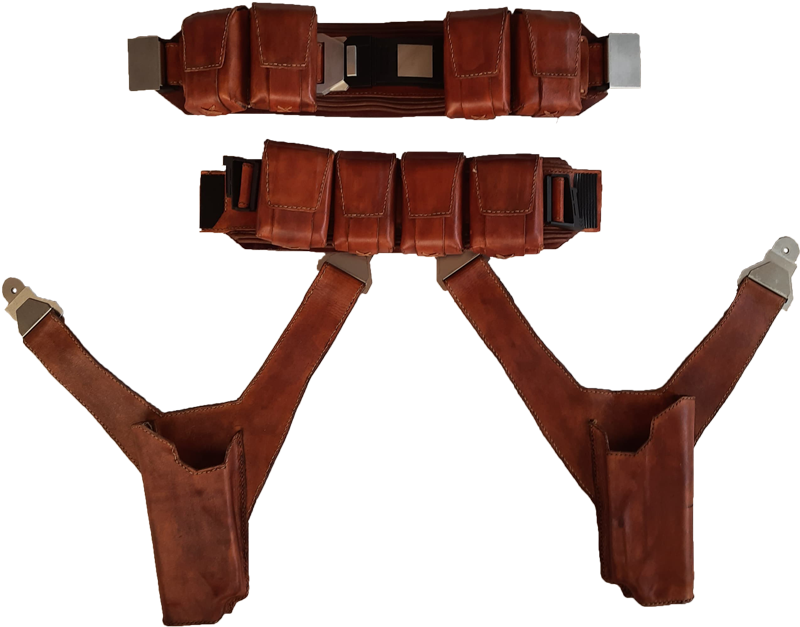

• All Belts, Holsters, and Ammo Pouches are made of leather or leather-like material. See Color Palette for Belts, etc.
• Also note, all below sizes are approximate and should properly fit the scale of the wearer.
• The following components comprise this section and will be broken down individually: Girth Belt (2 layers), Ammo Belt (2 layers), Ammo Pouches and Holsters.
• Refer to the diagram for Belt layerings and hardware attachments Belt Layout Diagram and Hardware Diagram.
• Girth Belt:
• Inner base layer is approximately 3.5 inches (89mm) tall and dark brown to match the Calf Gaiters. It is made of 5 sections as indicated in Belt Layout Diagram above.
• Two hip sections, two back sections and one front section.
• All sections have angled corners.
• The front section overlaps over the back section by closing the hip buckles.
• Front and back sections overlap under the Hip Buckles are located on Ammo Belt.
• Note: Inner layer is where the Holster hardware is attached with screws hidden by Outer layer.
• Outer layer is narrower than base layer and lighter brown. Two ribs, approximately 3mm wide, appear above and below the Ammo Belt when worn.
• Ribbing mirrors angled corners of Inner layer, but stop short of Inner layer edge on ends by approximately 1 inch (25.4mm) on all sections.
• Ammo Belt:
• Inner belt is approximately 2.25 inches (57.1mm) wide with lighter single stitched edge.
• Outer hardware belt is approximately 1.5 inches (38.1mm) wide and features a Center Buckle and two Hip Cinch Buckles.
• On each side of Hip Cinch Buckles are rectangular belt loops, approximately 1 inch (25.4mm) wide, with rounded corners. They are stitched to Inner belt with one loop of matching cording spaced to accommodate Outer belt.
• Outer belt loops through and back on itself on each end of the Center Buckle and the Hip Buckles. Center Buckle is worn with trapezoidal shape to the wearer�s right. Hip Cinches are worn with visible belt loop towards wearer�s back.
• Eight total Ammo pouches are worn on the Outer Ammo Belt.
• Ammo Pouches:
• Two of the eight Ammo Pouches are larger than the rest, and worn on the back adjacent to the Hip Cinch Buckles.
• All pouches are same height as the Girth Belt at approximately 3.5 (88.9mm) inches tall. Smaller pouches are approximately 2.25 inches (57.1mm) wide, and larger pouches approximately 3 inches (76.2mm) wide.
• Pouches have an angled top, and flap tapers slightly inward on side of pouch to rounded corners, and overlaps the smaller lower strap.
• Flaps feature lighter visible edge straight stitching.
• Holsters:
• Holsters are made of 2 sections. A rear strap that wraps to form holster, and a front strap that is sewn to the leading edge of the upper Holster.
• Straps are looped through triangular-shaped brackets at the Girth Belt, and stitched back to themselves.
• Brackets are painted metallic silver, and attach to the Girth Belt with Chicago screws or similar.
• Attachment points are located under two center Ammo Pouches in the back, and under pouches on either side of Center Buckle.
• Holster edges have visible single stitch on edges.
• Bottom of Holster ends approximately at the bottom edge of Thigh Armor.

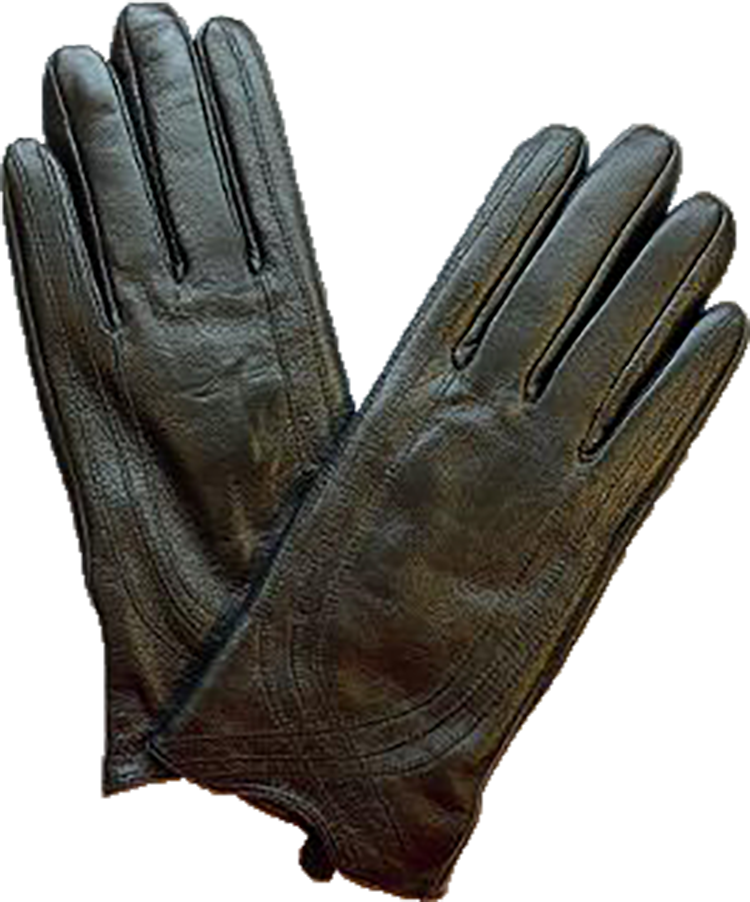

• Gloves are black leather or leather-like material.
• Double stitch lines run from wrist to tip of pointer and pinky fingers.
• A crisscross pattern is seen at the wrist.
• Gloves may stop before entering Gauntlets as long as no skin is visible beneath.

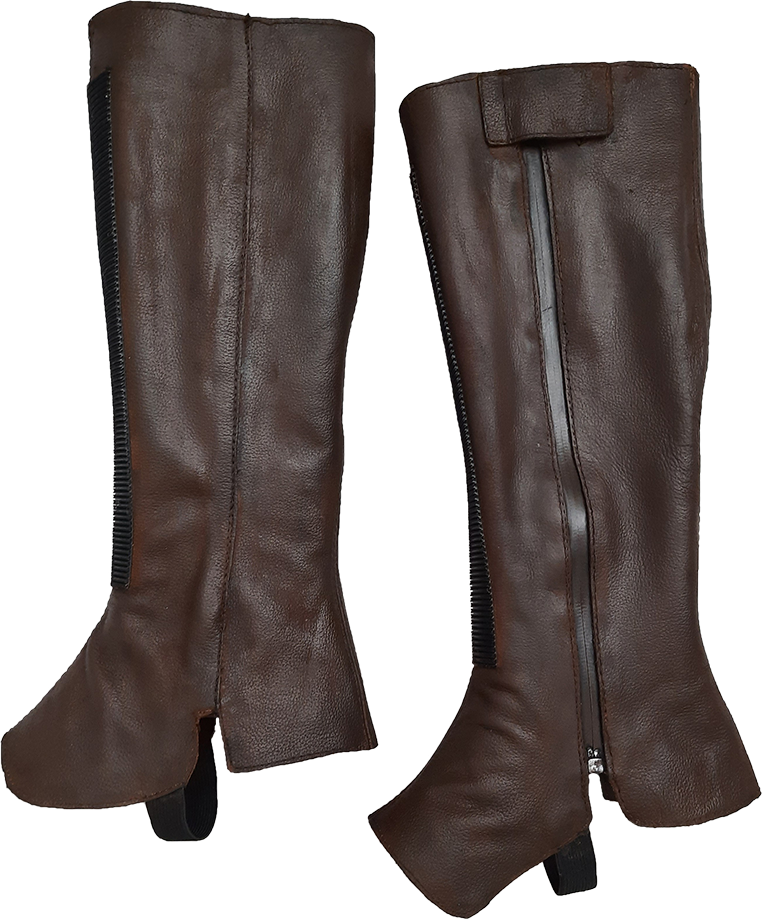

• Gaiter components are made of leather or leather-like material with a bit of grain visible.
• Main sections are dark brown and slightly darker than the boots, and are comprised of four sections indicated by the seams on the front, back and each side.
• Bottom has an inverted �V� without the point on both sides located at the top of the sole arch.
• Straps, approximately 1.75 inches (44.45mm) wide, are located at the ankle and the upper calf. They are used to attach the Shin Armor to the wearer.
• The base layer is the same material as the Ammo Pouches with a rolled edge.
• The center has 5 ribs and is the same material as the Girth Belt.
• A rectangular strap with rounded corners and stitch lines a bit behind the edges, appear at the top inner side which bridges the seam.

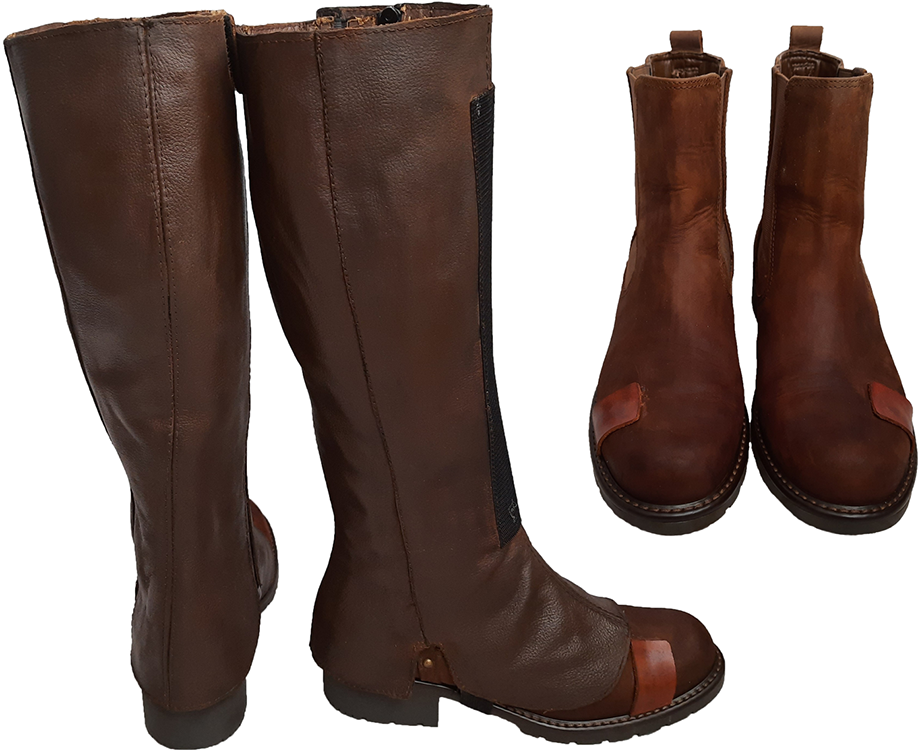

• Ankle style Chelsea Boots are medium to dark brown leather or leather-like with black or matching brown rough tread sole.
• Sole is no more than � inch (12.7mm) thick at toe and has a rear rounded heel approximately 1-2 inches (25.4-50.8mm) tall.
• An additional rectangular toe strip of leather, approximately 1.5 inches (38.1mm) wide, extends from the sole and wraps to the top on the outside at the pinky toe, stopping slightly past the second toe.
• No logos or details are seen once Calf Gaiters are worn.

Optional Accessories

Items below are optional costume accessories. These items are not required for approval, but if present appear as described below. If adding in an accessory after initial approval, the item still needs to be submitted to local GML for approval before use.

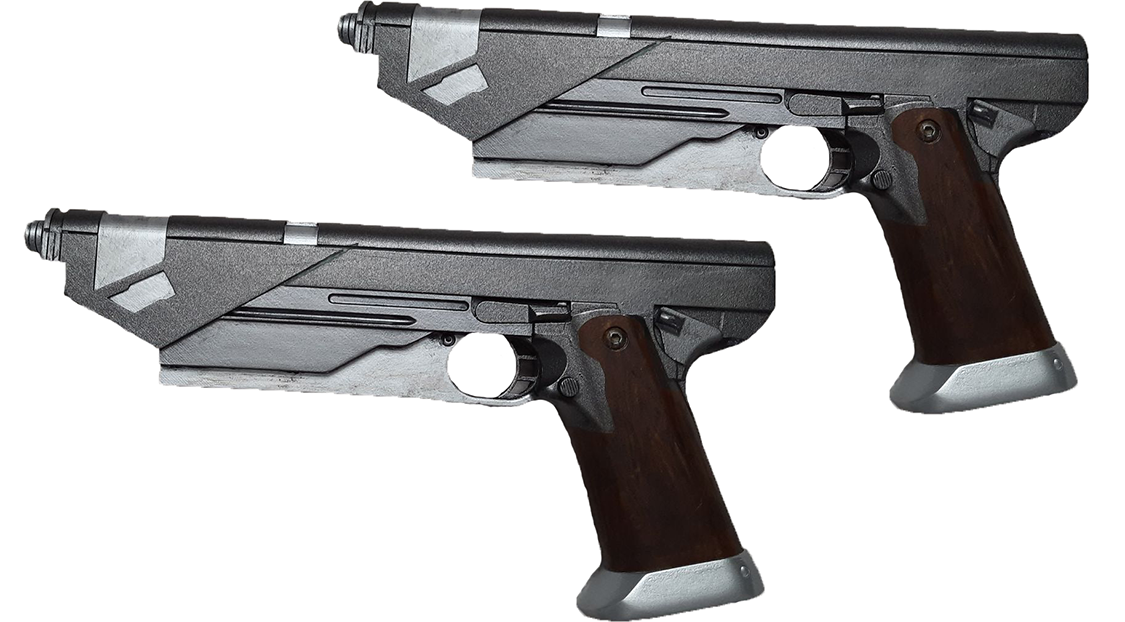

PLEASE NOTE: Blaster is to represent a live action version of the Westar-35.

• Blaster pistol is based on the Infinity Firearms pistol (2011 frame) with Infinity Skater Terrain Grips and Billet Grip XL Magwell and 2 are required.
• Blaster pistol grip and Magwell do not have any logos or writing.
• Blaster Pistol slide has angled top corners and the slide extends rearward to meet the end of the grip safety.
• Blaster Pistol slide features a raised greeblie with 5 horizontal rows on the end.
• Blaster Pistol features an extended slide safety on the right side, immediately below the slide and behind the grip.
• Blaster pistol is gunmetal, silver and black.
• The Magwell and grip screw are a metallic silver color.
• The textured pattern on the grip is light brown and of a wooden appearance.
• The inside of the Magwell is not recessed.

• Hair is Red-Orange in color and styled in a �Bob� cut that is angled shorter in the back with a center part.
• If a wig is worn it is to match color and style.

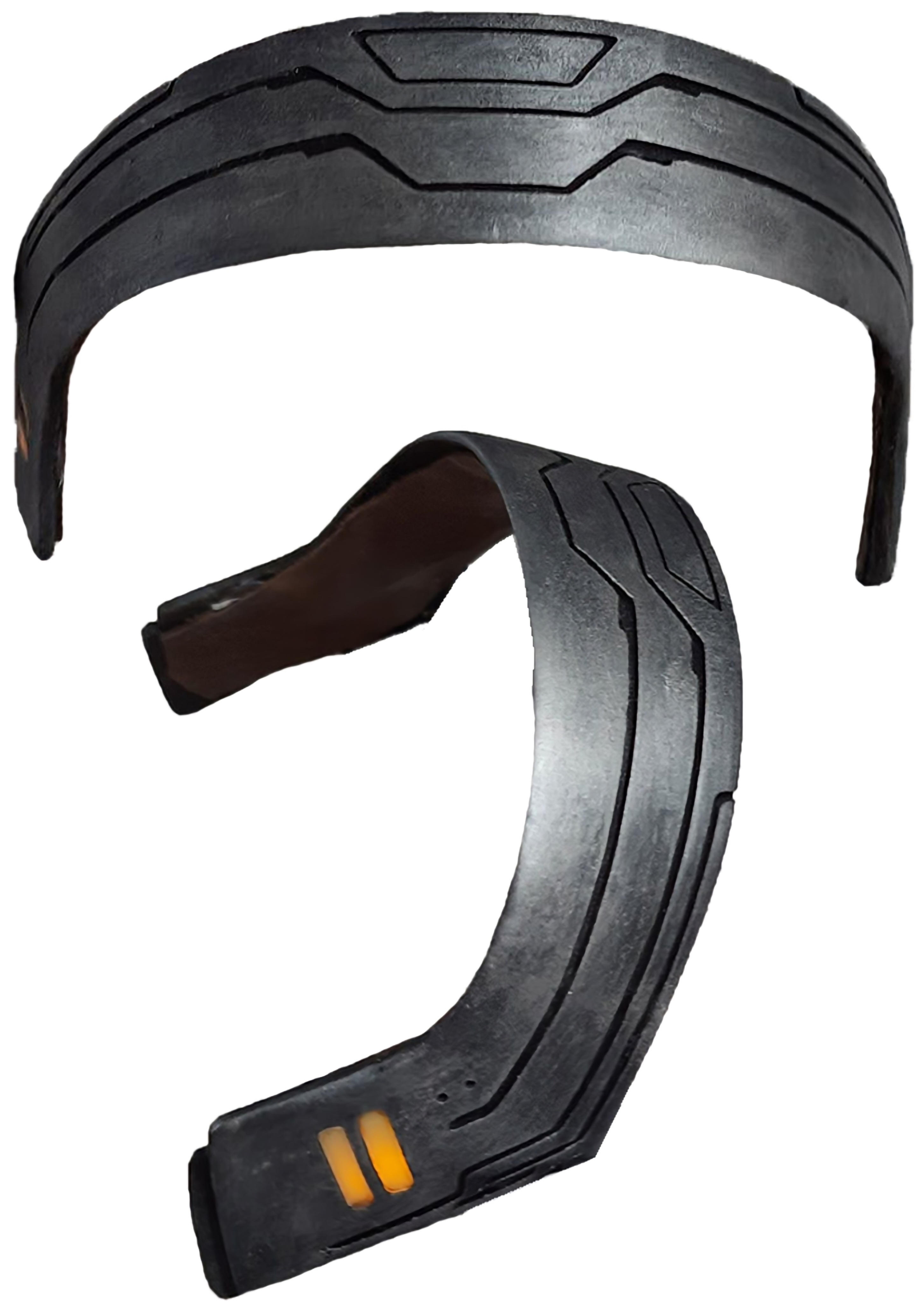

• Headband is required to be worn.
• A scar is present on the right side of the forehead and runs diagonally to the end of the right brow.

• Headband is Gunmetal with silver highlights and black details around the outside.
• Headband is fitted to the wearer and extends down between the middle of the ear and the corner of the eye.
• Head Band sits along the wearer�s hairline, bridging the gap between the forehead and hair evenly. Some hair may be visible on the sides.
• Two yellow/orange rectangles are located on each side at approximately eye level.
