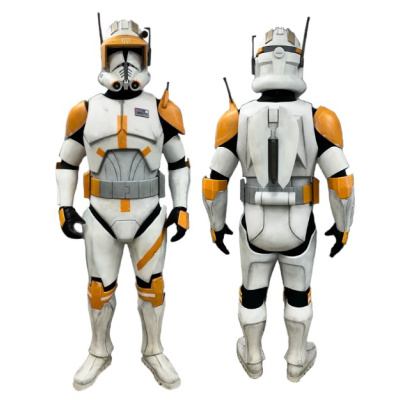

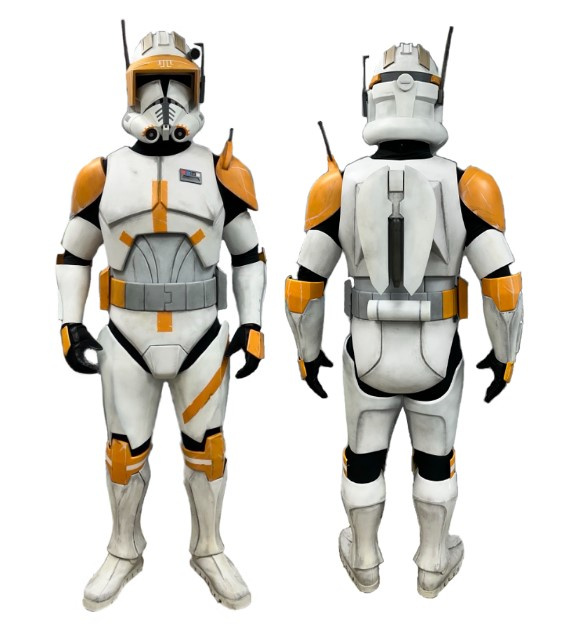

Commander Cody (Phase II) - Season 7

Model CC-50139, Photo by TK-41539
Description: (Commander Cody (Phase II))
Prefix: CC
Detachment: Clone Trooper Detachment
Context: Star Wars: The Clone Wars, Season 7

As a senior level veteran, Cody commands the 212th Battalion and is among the highest ranking Commanders within the Grand Army of the Republic. Cody strictly follows each and every order given to him, but is renowned for having an independent nature, sarcastic good-humor, and loyalty to fellow troopers.

This is a visual guide used for 501st costume approval, not a how-to for construction. Construction details are found at the costume's Detachment website. Measurements provided here are generalized, and not criteria for approval. All 501st costumes are proportionate to the wearer in terms of size, fit, and scale. During evaluation, both text and images (CRL and Reference) must be considered. When in doubt about a feature of a submitted costume, GMLs should post questions in the Legion forum's DL/GML peer review section.

Required Costume Components

The following costume components are present and appear as described below. For 501st membership only the requirements in black need to be met. This Detachment defines additional, optional costuming details listed in blue and red. Please visit the Detachment website for more details on these options.

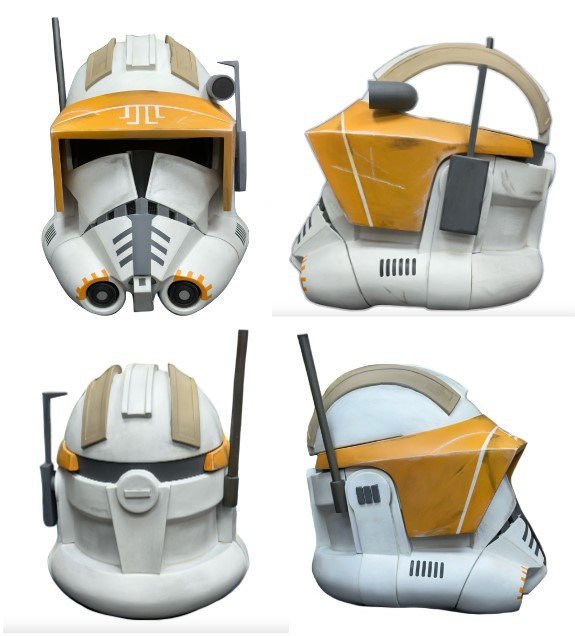

• Visor is painted orange with white details and sits on the brow band and extends around the indented band just behind the ear columns.
• Five orange bursts are present at the top of each aerator.
• There is a Phase II style mohawk on top of the dome.
• Two larger mohawks are present on the top of the dome, one on each side of the smaller mohawk.
• Larger mohawks are painted a light tan.
• Side mohawks extend further down the back of the helmet than the smaller, center mohawk.
• Bullet shaped spotlight is attached to the left front of the dome just above the visor.
• Spotlight points forward.
• Spotlight is painted dark grey with black center eye.
• Rectangular communication device is mounted to the left ear of the helmet and is painted grey.
• A stalk extends to just under the highest point of the helmet and extends inward to a sharp point.
• Charcoal grey antenna is attached behind the right ear column and extends above the helmet.
• Antenna base aligns with area between back recessed area and top of ear cap.
• The frown has six removed teeth spaces.
• Frown is painted dark grey.
• Fine black mesh is utilized inside the helmet to cover the open pieces of the frown.
• A dark grey rectangular detail with three downwards diagonal stripes on either side extends from the bottom of the frown to the chin, matching references.
• Ear caps are dark grey.
• Extra chin piece is present over the vocoder.
• Vocoder is dark grey.
• Aerators are black with a grey center circle.
• Rear helmet indented stripe is painted grey.
• There are six black vent stripes on each side of the helmet.
• Black eye lens extends down to the frown area.
• Lens obscures the wearer’s eyes.

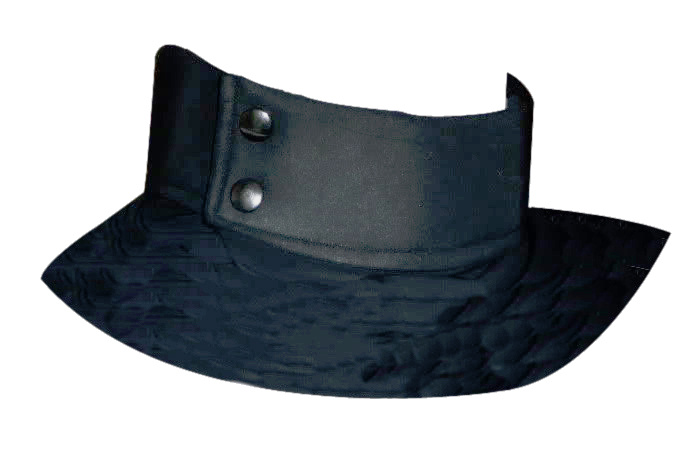

• Neck seal is black in color with no ribbing.
• No logos or labels are visible.

• Black non-textured material, either one-piece or two-piece construction with no visible zippers or logos.

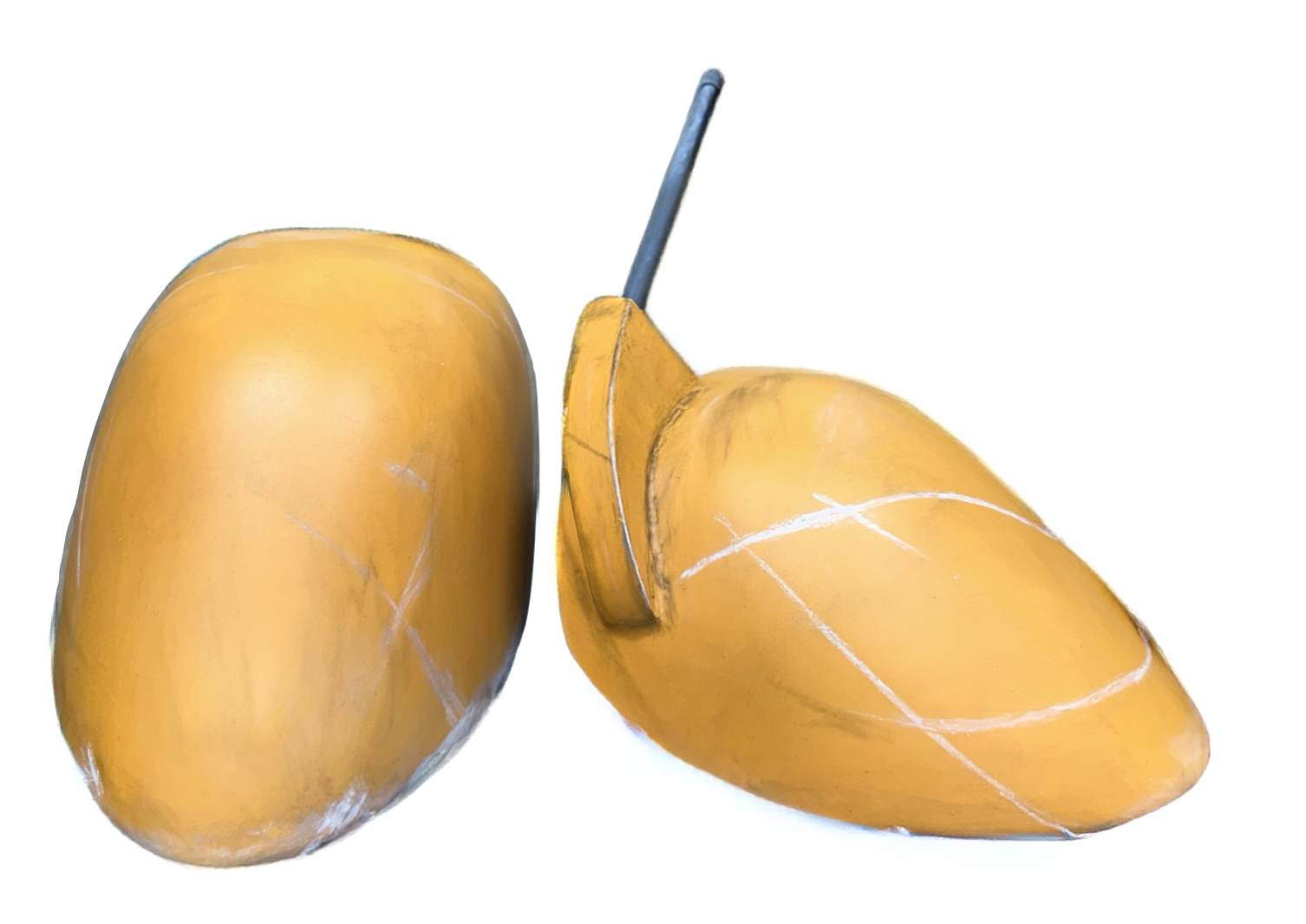

• Shoulder armor is inverted teardrop in shape.
• Bottom edge of shoulder armor is horizontal to the ground with rounded edges.
• Shoulder armor is painted orange.
• Right shoulder has an antenna located near the top edge of the armor.
• Antenna is painted grey.

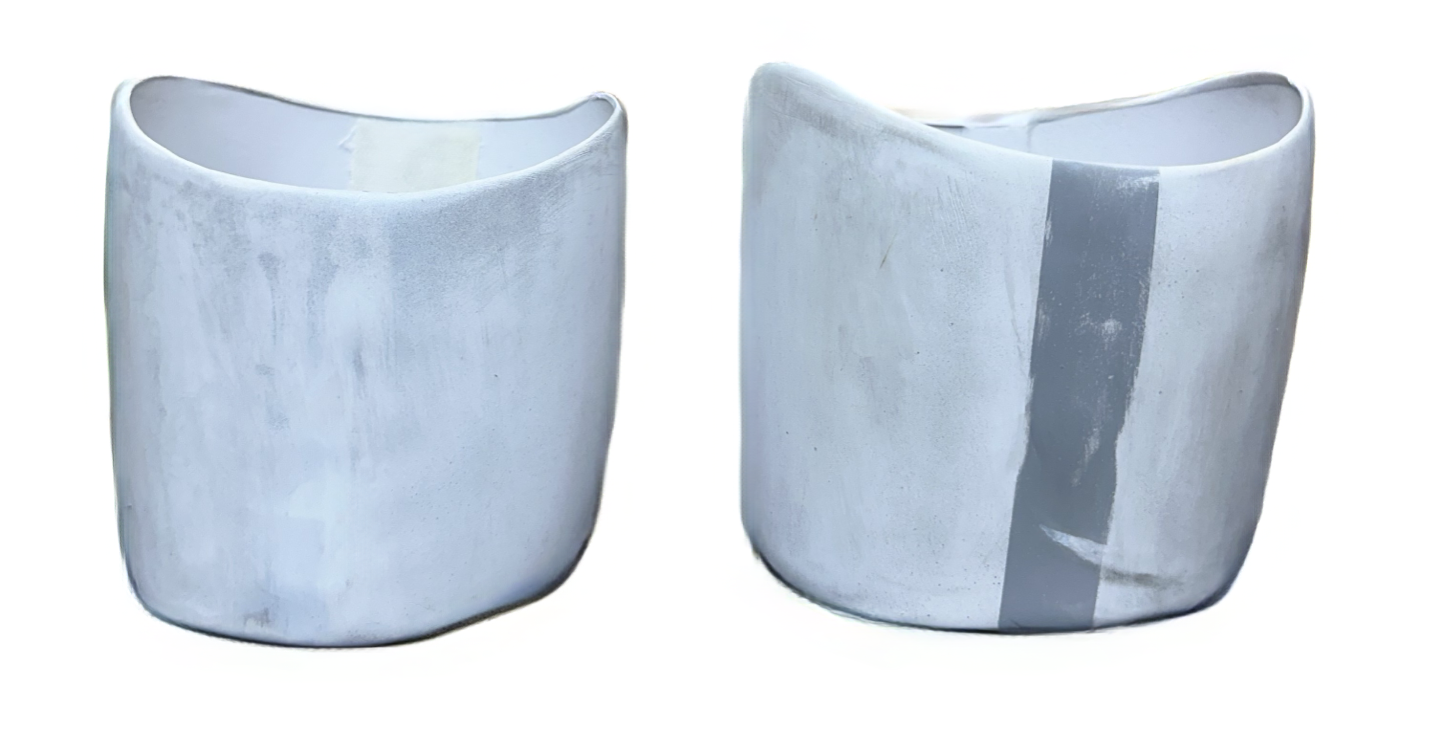

• Armor is cylindrical with no rear indent.
• A grey stripe is present down the middle of the outside face of the armor.
• Armor is seamless.
• No visible traces of how the armor was assembled are shown.

• The elbow armor is detached from the forearm.
• Elbow armor sits flush with the forearm armor.
• Armor is attached to the wearer with a black elastic strap or similar method.
• Armor is painted orange.

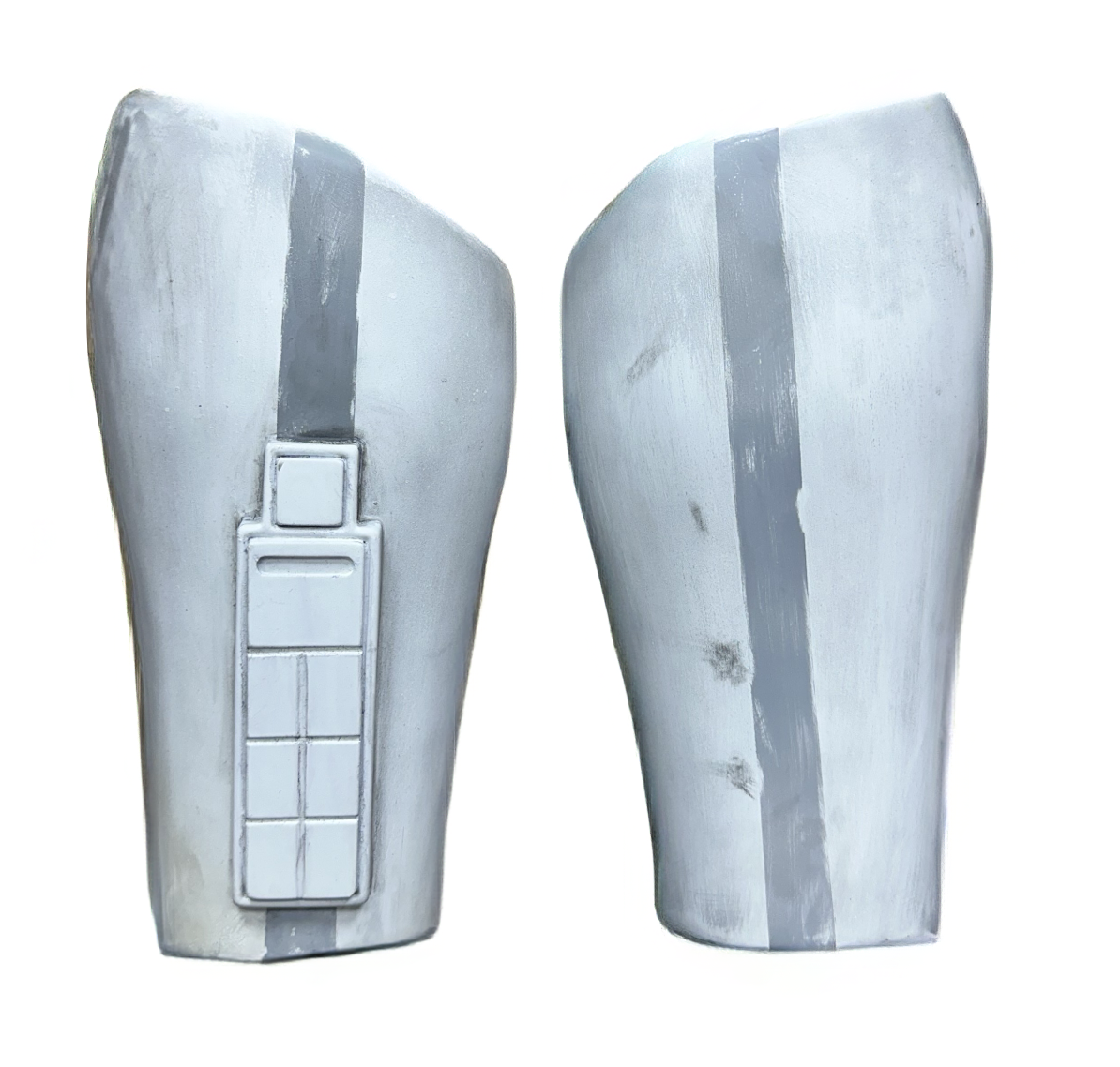

• Right forearm has a compad with 6 raised buttons, and a larger rectangle above them.
• A smaller raised section is closest to the elbow.
• A 1-inch grey stripe is present on the top face of the forearms.
• Armor is seamless on the outside edge.
• Due to the shape of the armor, a butted seam is acceptable on the inside if required.
• Elbow plate is detached from the forearm.

• Armor is painted orange.
• Hand plates are mirror images of each other.
• Hand plates have an angled peak that comes to a point over the index or middle finger, just past the main knuckle of the hand.

• Black over the wrist gloves made of leather, nylon, or other low pile fabrics.
• Gloves cover any exposed skin.
• Gloves do not show any labels or logos when the armor is worn.

• Chest features three orange stripes.
• The center stripe is approximately 2" wide and extends from the bottom of the chest to just past the halfway point of the chest.
• The remaining two stripes are approximately 1.5" and extend from the bottom of the chest to halfway to the bottom of the pectorals.
• The outside edges of the smaller stripes are collinear with the outside edge of the pectoral ridge.
• A commander badge is present on the left chest with four indented colored squares and an elongated trapezoid below the squares.
• Base of the badge is grey.
• Indented trapezoid is dark grey or heavily weathered grey.
• Indented squares are light orange, light blue, dark grey, and white starting from the left.
• Indented squares are weathered.
• Lower portion of the chest has a squared notch for the abdomen armor to fit into.
• Chest and back plate match together at the sides and shoulders with no open gap.
• Butted seam lines are permitted if required.
• White shoulder straps fit into the top of the chest and back.

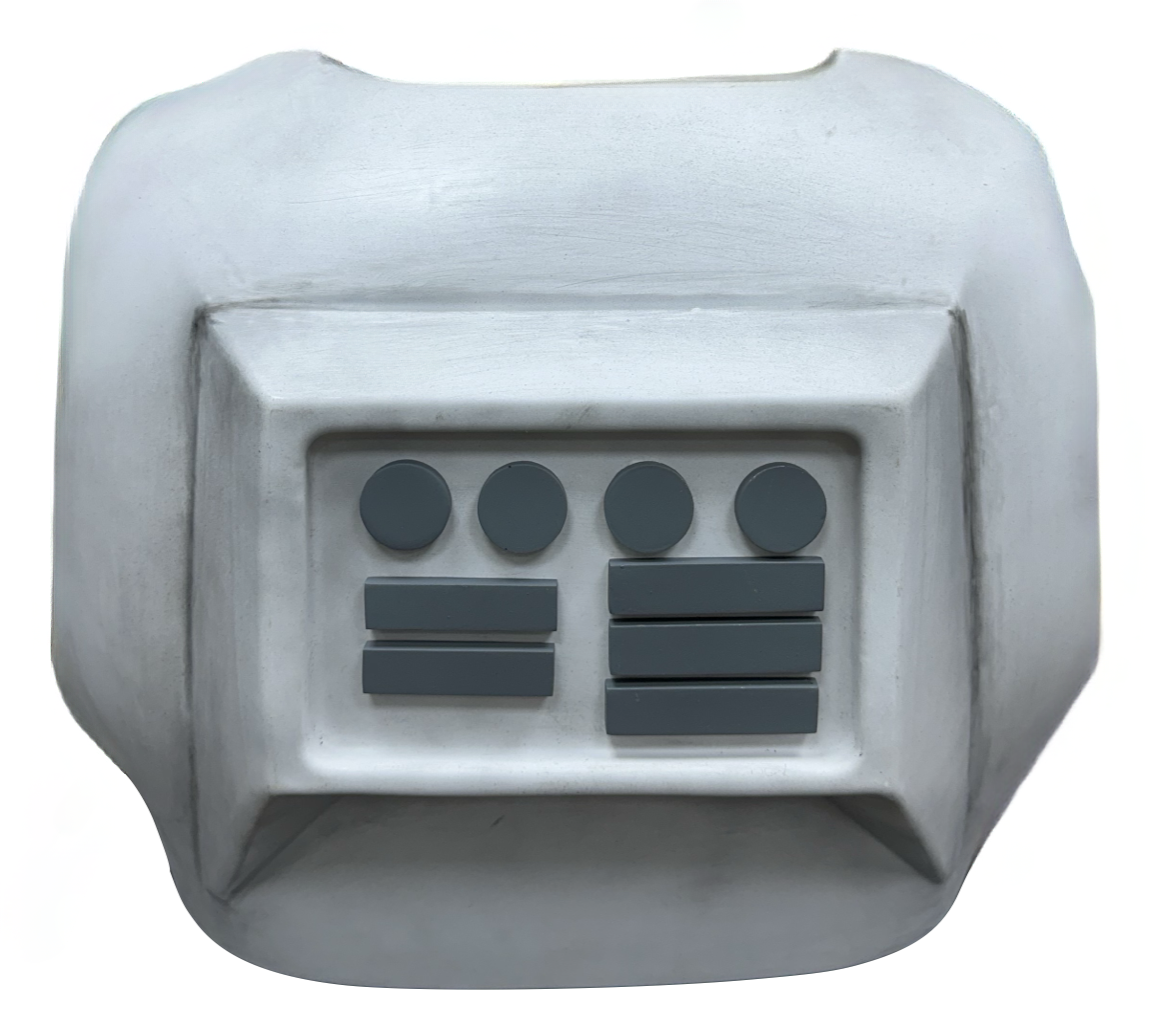

• Back armor has a detail plate consisting of four grey circles and five grey horizontal bars.
• Chest and back plate match together at the sides and shoulders with no open gap.
• Butted seam lines are permitted if required.
• White shoulder straps fit into the top of the chest and back.

• The center thruster section is painted a golden brown color.
• The central groove between the two sides of the jet pack is painted light grey.

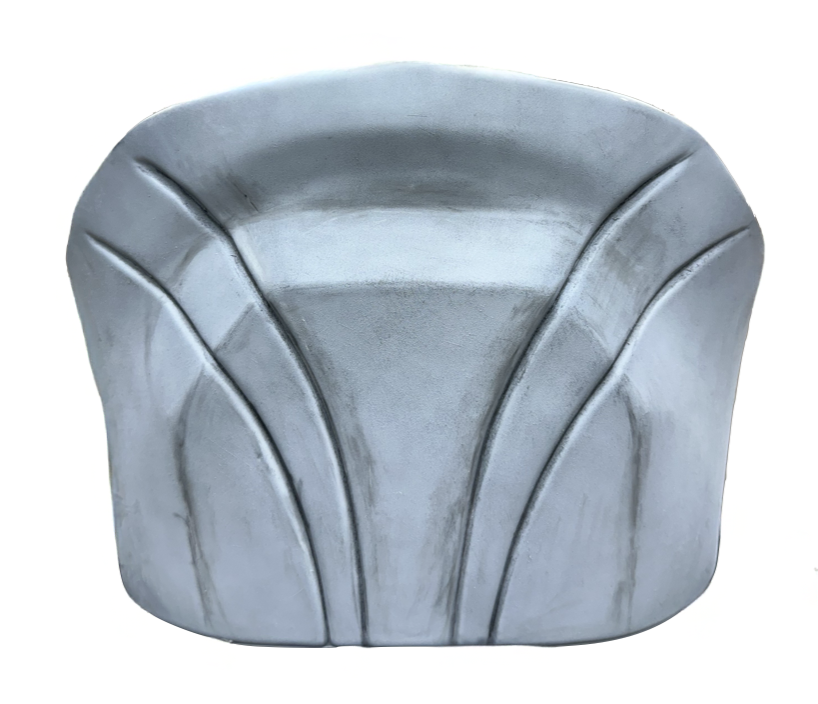

• Abdomen is painted white with light grey overlay.
• Top edge of the armor is squared off to match the chest armor.
• The abdomen armor protrudes out in the middle to match the shape of the chest armor.
• The abdomen armor joins at the rear and the joint is covered by a center plate.
• Dark grey panel lining is present in recessed grooves.

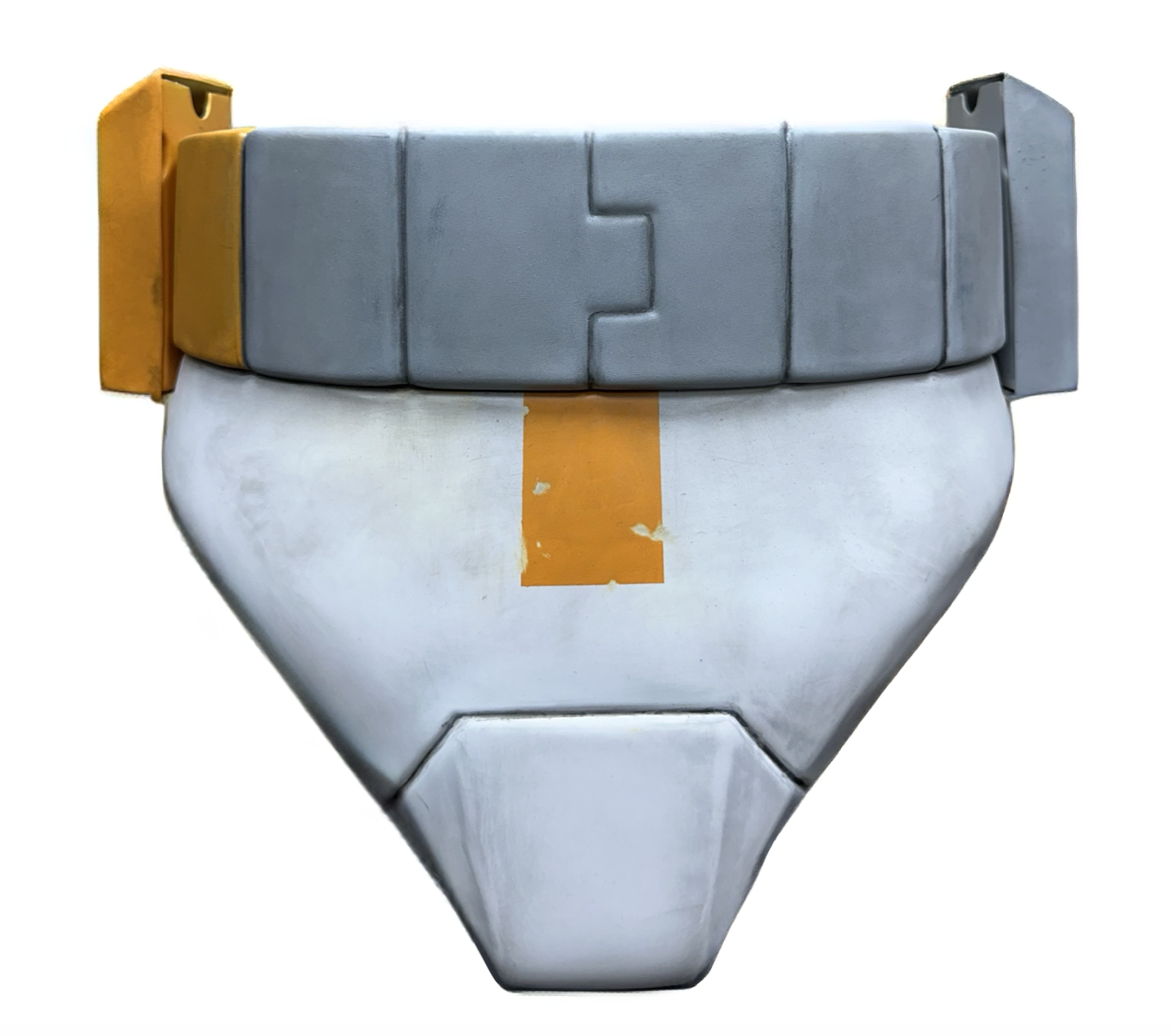

• Belt is painted light grey.
• Codpiece features a center orange stripe just below * the belt.
• Belt is approx. 3" tall and divided into 1.75" wide * segments.
• The front segments have a key/slot detail.
• Belt boxes are mounted at the hips.
• Codpiece and Posterior armor connect at the hips.
• Butted seams are permitted at this connection if * required.
• Dark grey panel lining is present in recessed grooves.

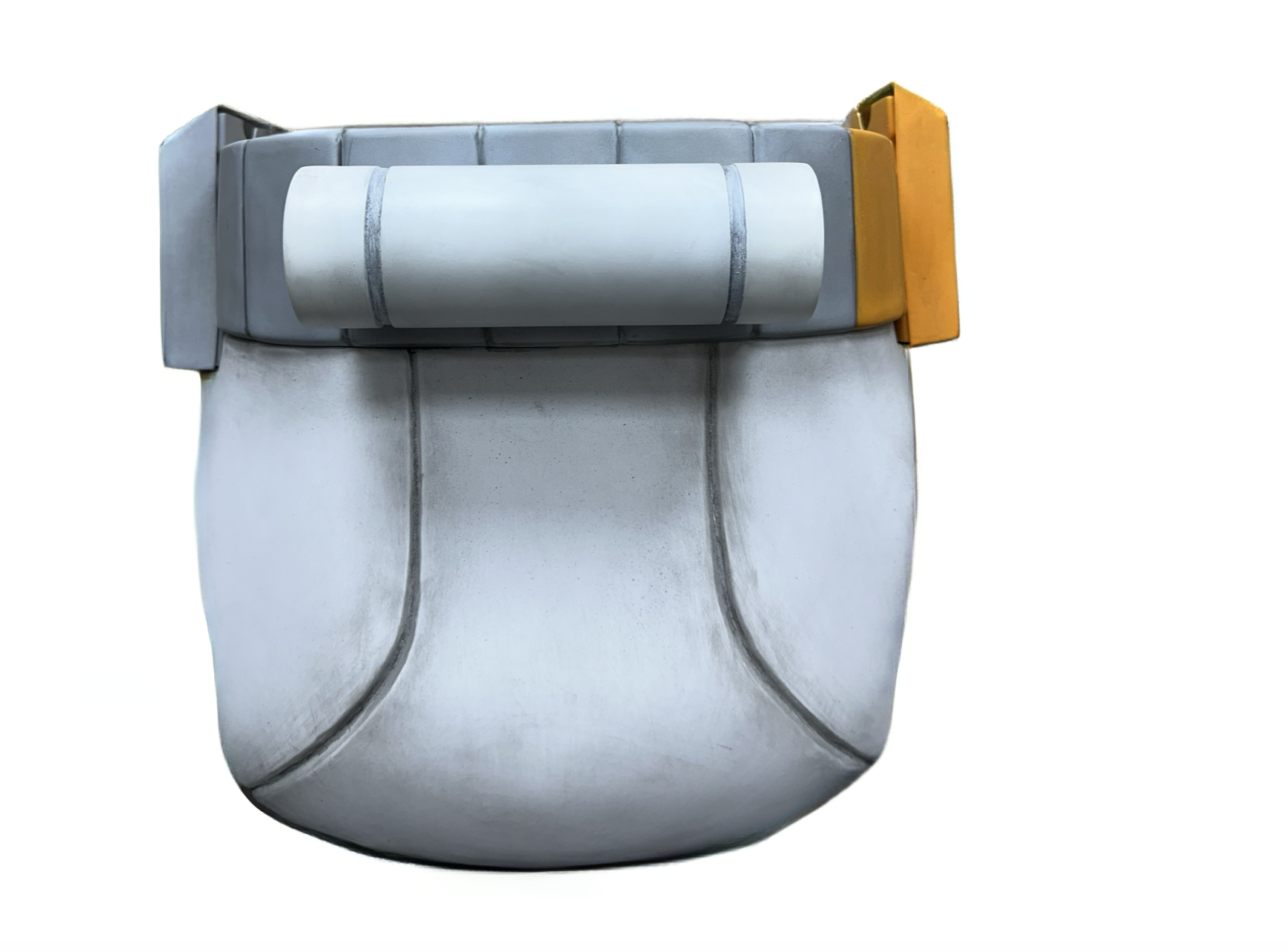

• Belt is approx. 3.5 inches tall and divided into 2 and 1/4 inch segments.
• Cod and Posterior armor connect at the hips.
• Butted seams are permitted at this connection if required.
• Detonator is centered on the back of the belt with no control buttons.
• The detonator has two lines set in approx. 1 inch from the edges.
• Lines may be recessed or painted on.
• The center of the detonator end caps are painted grey.
• Dark grey panel lining is present in recessed grooves.
• Detonator lines are recessed.

• Two rectangular boxes with one mounted on each side of the belt.
• Left box is painted light grey and the right box is painted orange.
• The top side of the box is tapered outward.
• There is an inset detail near the top of each box.

• Left thigh has a diagonal stripe approximately 1.5 inch wide extending from near the top ridge of the thigh at a downward angle to the middle of the inside seam.
• Front of thigh armor has a flat triangular area near the knee with a notch cut out for the knee armor.
• From the top of the triangle a ridge line travels up the front of the thigh to the top edge.
• The upper outer edge has an angled section.
• Armor is seamless.
• No visible traces of how the armor was assembled are shown.

• Knee armor is detached from the lower leg armor.
• Knee armor sits flush with the front of the lower leg armor.
• Armor is painted orange.
• An approximately ¾ inch wide, white stripe runs from the ends of the knee to the center, but does not cross over the center face.
• The knee armor is attached to the wearer using black elastic straps, or a similar method.

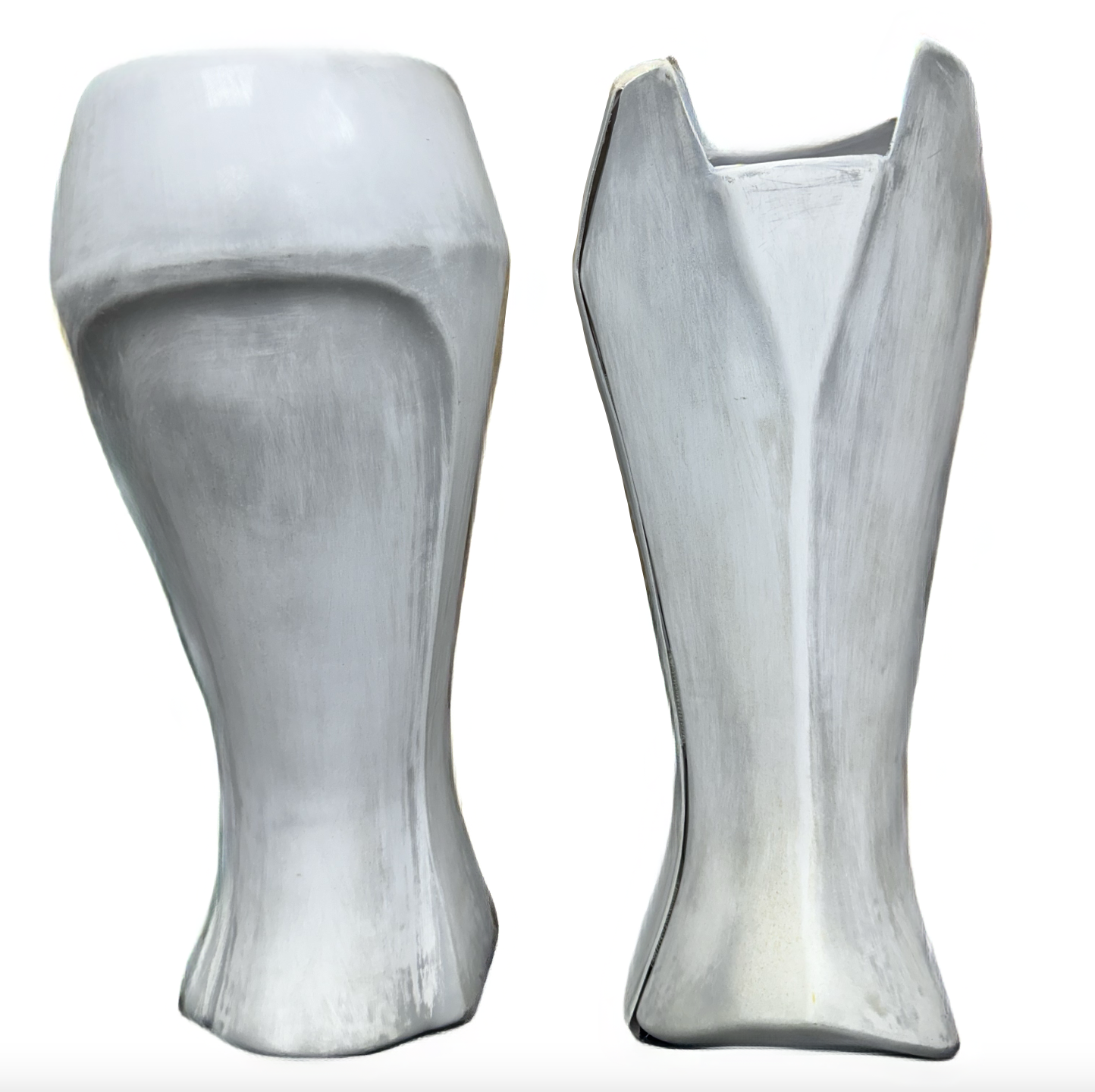

• Knee armor is detached from the lower leg.
• The front of the armor has a triangular detail just below the knee and a hard ridge line down the front of the shin.
• Back of the lower legs have an indentation just under the calf that extends down to the ankle.
• The outside of the calf is seamless.
• A clamshell opening on the inner seam is acceptable.
• Armor is weathered with shades of grey.

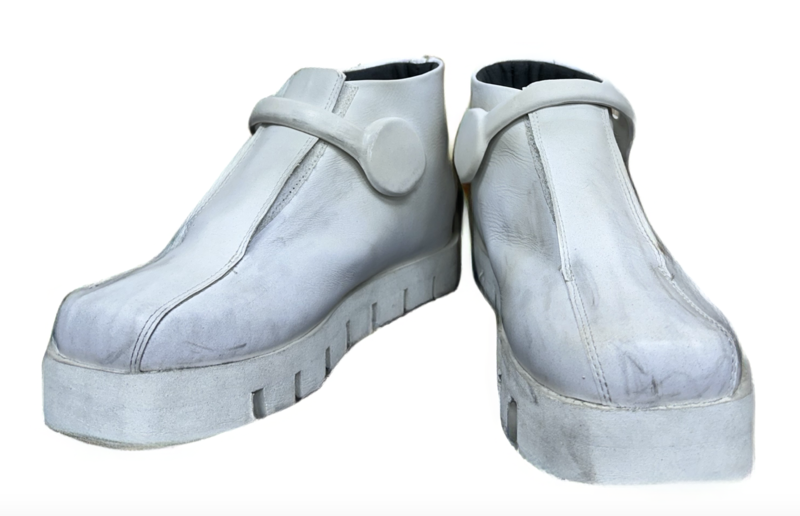

• White, ankle high or tall enough to cover the ankle and eliminate any black undersuit visible at the ankle area.
• Boots are lace-less and have flat soles.
• Boots have a center strip running from the toe to the ankle.
• A strap across the top of the foot, and 2 flat white discs on either side of the foot, terminating the strap.

Optional Accessories

Items below are optional costume accessories. These items are not required for approval, but if present appear as described below. If adding in an accessory after initial approval, the item still needs to be submitted to local GML for approval before use.

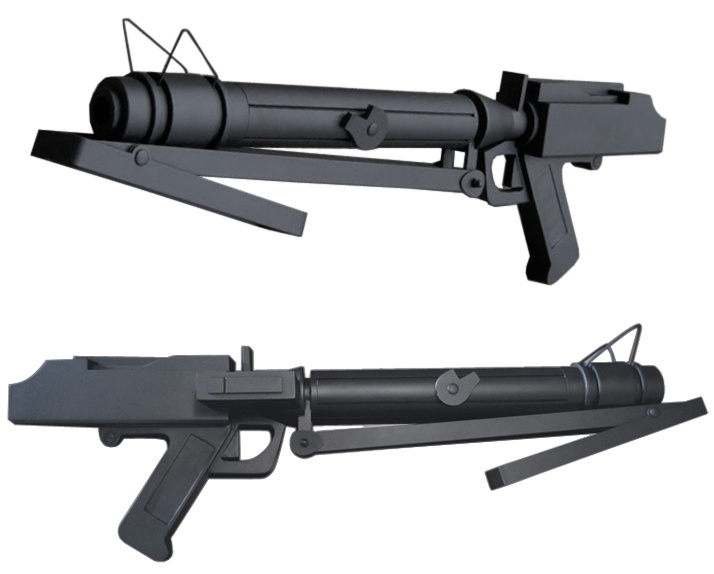

• This is the animated variant of the DC-15S blaster rifle.

• This is the animated variant of the DC-15A blaster rifle.
