Third Sister: Reva - Obi-Wan Kenobi

Visit the Gallery for this Costume for more models and parts views.

Model DS-41414, Photo by Photo by C Cato
Description: Third Sister: Reva (Obi-Wan Kenobi)
Prefix: DS
Detachment: The Flagship Eclipse Detachment
Context: Obi-Wan Kenobi Series

Seething with ambition, Reva hunts down Jedi survivors of Order 66 as an Inquisitor. She wears the sleek armor of the secret order, and brandishes a unique lightsaber that can split in two to maximize her lethality. Having stared down her enemies, Reva’s talents as a survivor are tested to their limits.

This is a visual guide used for 501st costume approval, not a how-to for construction. Construction details are found at the costume's Detachment website. Measurements provided here are generalized, and not criteria for approval. All 501st costumes are proportionate to the wearer in terms of size, fit, and scale. During evaluation, both text and images (CRL and Reference) must be considered. When in doubt about a feature of a submitted costume, GMLs should post questions in the Legion forum's DL/GML peer review section.

Required Costume Components

The following costume components are present and appear as described below. For 501st membership only the requirements in black need to be met. This Detachment defines additional, optional costuming details listed in blue and red. Please visit the Detachment website for more details on these options.

• The hair is very dark brown or black and braided.
• Front should be raised in a “bump” style.
• The braids are raised into an inverted french braid down center of head, and gathered in a pony-tail at the base of the neck.
• Braids are comprised of smaller locks of hair.

• The cape is made from black, textured, wool or wool-like, medium weight fabric that is lined on the inside.
• The cape should lay flat between the shoulder blades, under the armor hiding the top of the cape.
• The cape doesn’t extend past the costumer’s ankle.
• The cape is split at the bottom on the center seam.

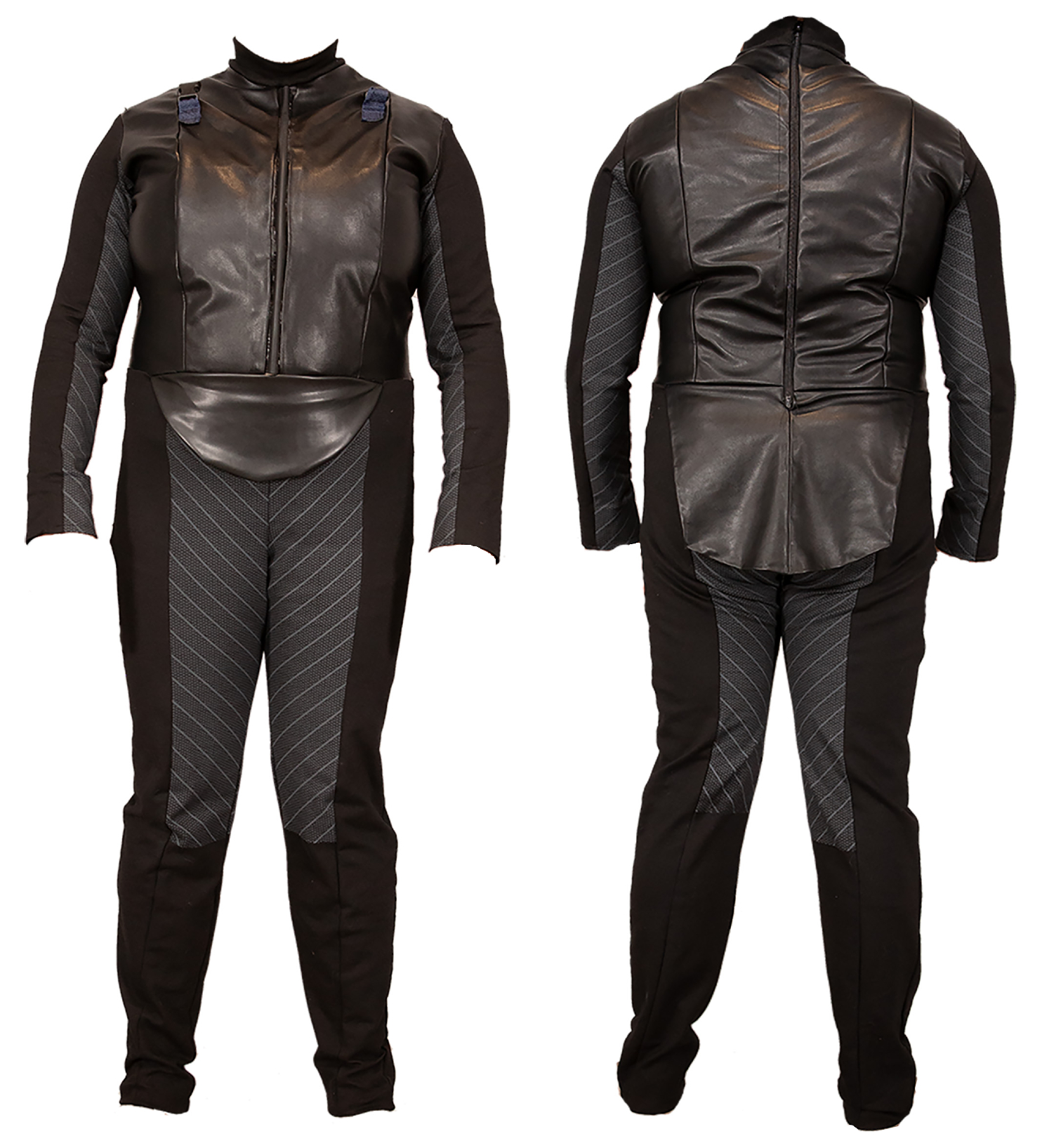

• The bodysuit sleeves and legs are made from a black, 4-way stretch fabric.
• The inside panels of the legs and arms are printed on black fabric with 3 pointed star and stripe pattern in dark gray.
• The stripe should be 45 degree angle and stripes should meet at center inside seam on legs.
• The legs should have 4 seams: center front, inside thigh, outer thigh, back.
• Arms have 2 seams: center back and center front.
• The top is made from a leather or leather-like material with a rounded short skirting at the front and a longer skirting at the back.
• The top has princess seams.
• A black triangle shaped rubber or rubber-like trim is placed down the center front seam.
• A black rib knit collar is attached to the neckline.
• The bodysuit has a discreet rear closure.

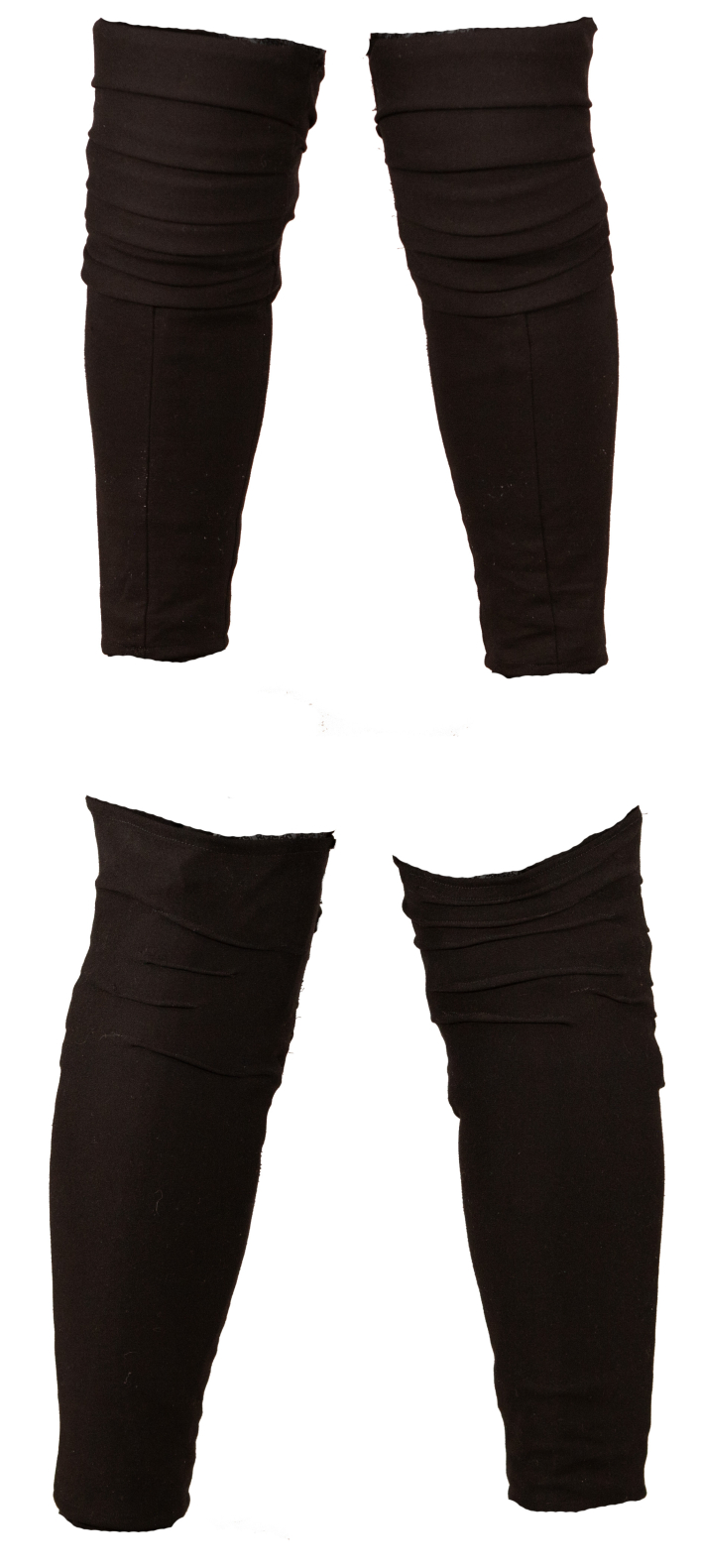

• The gaiters are made from a black 4-way stretch fabric.
• The gaiters are worn over the bodysuit and should cover the knee.
• There are six pleats over the costumer’s knee.
• Foam or padding may be inserted under pleats.
• There are four visible seams: center front, both sides and center back.
• Note: The gaiters may be attached to the body suit or separate.

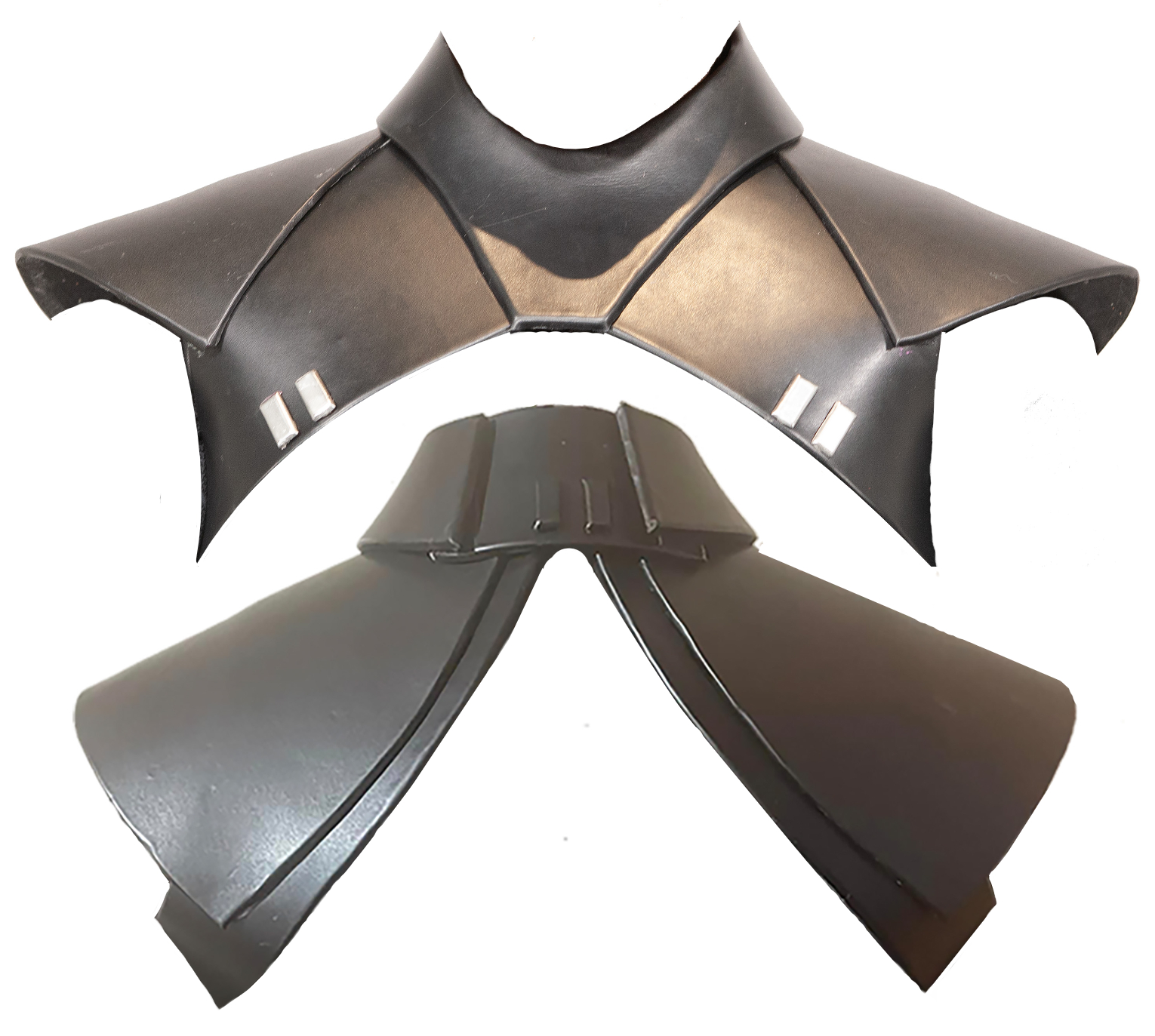

• The chest armor is made to look rigid, and is covered with leather or leather like material.
• Neck piece is made of 2 parts and has 2 rectangular greeblies in the same material on center back panel.
• Shoulder piece is offset at back from bottom armor piece.
• Rectangular silver insignia bars are placed in pairs on front panels.

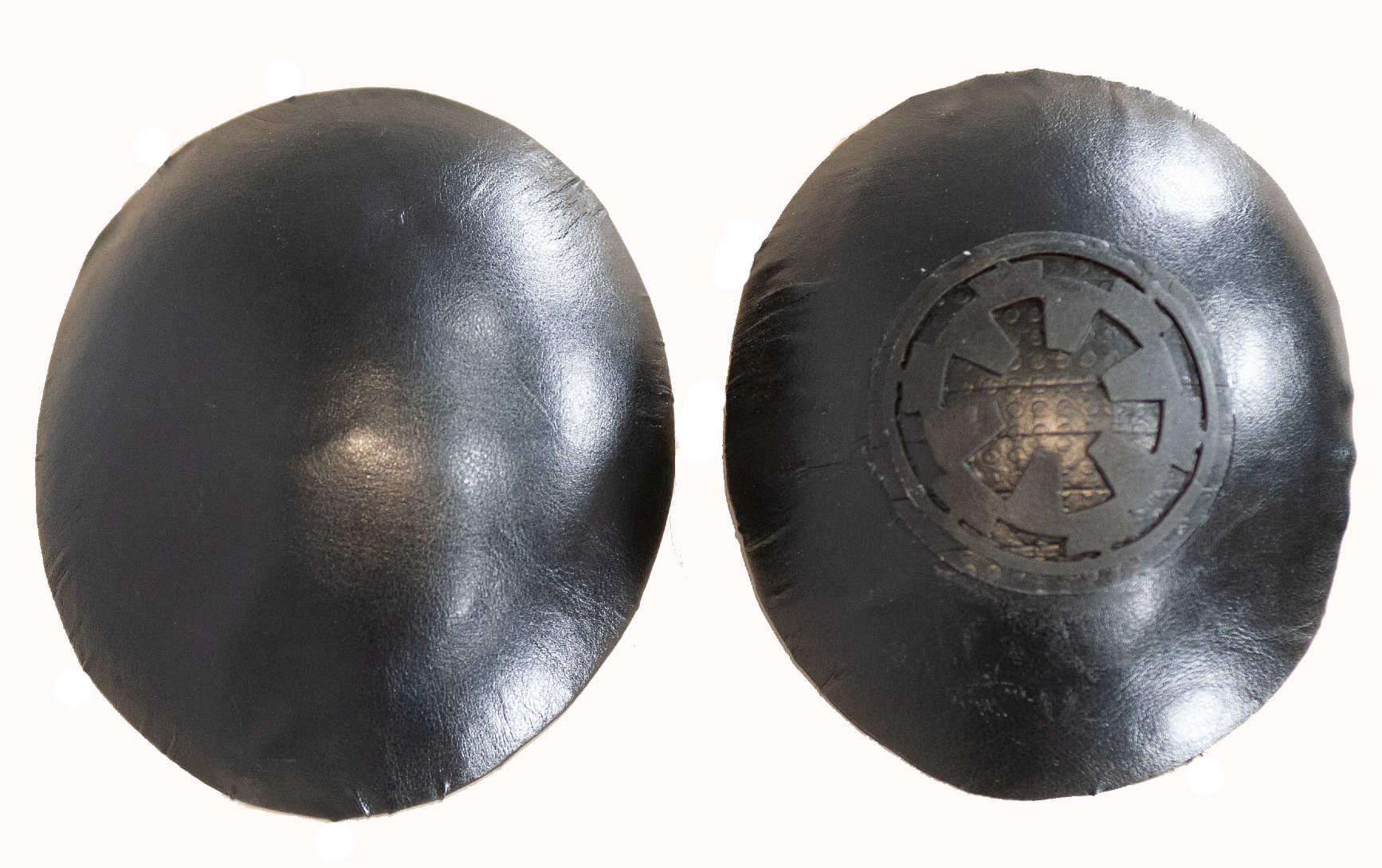

• The pauldrons are made of leather or leather-like material.
• The pauldrons are round in shape, and are worn underneath the chest and neck armor.
• Embossed on the right bell is an Imperial cog.
• The Imperial cog is made of two (2) parts with bottom layer textured.

• The gloves are made from black stretch fabric.
• The back panel of gloves is printed with dark gray 3-star pattern.
• The palm and thumb are black.

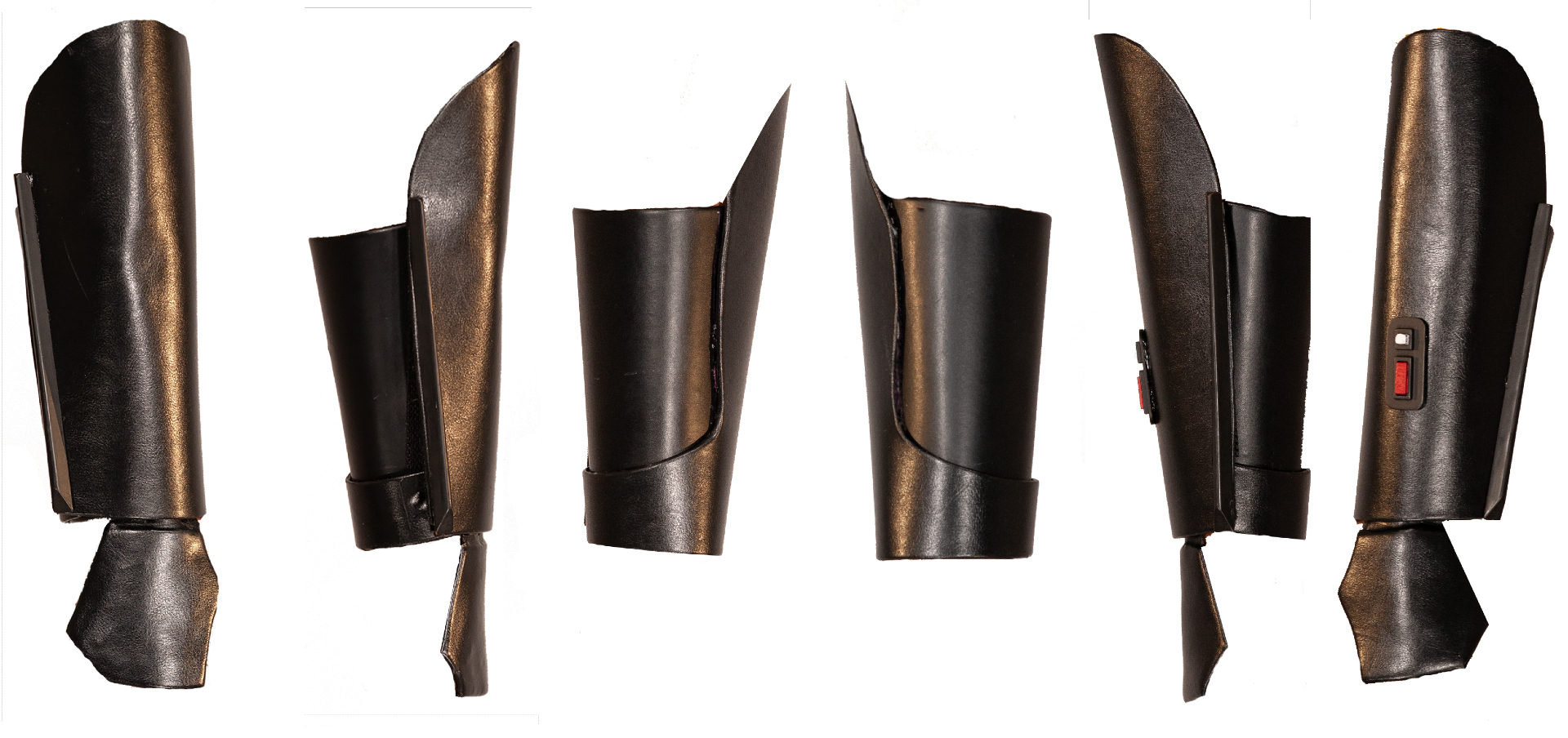

• The arm bracers are made from leather or leather-like material, comprised of an upper and lower piece.
• There is an asymmetric wedge along the outside edge.
• Hand guard is attached at the wrist.
• Left bracer has black light panel with small white light on top and longer red light on bottom.

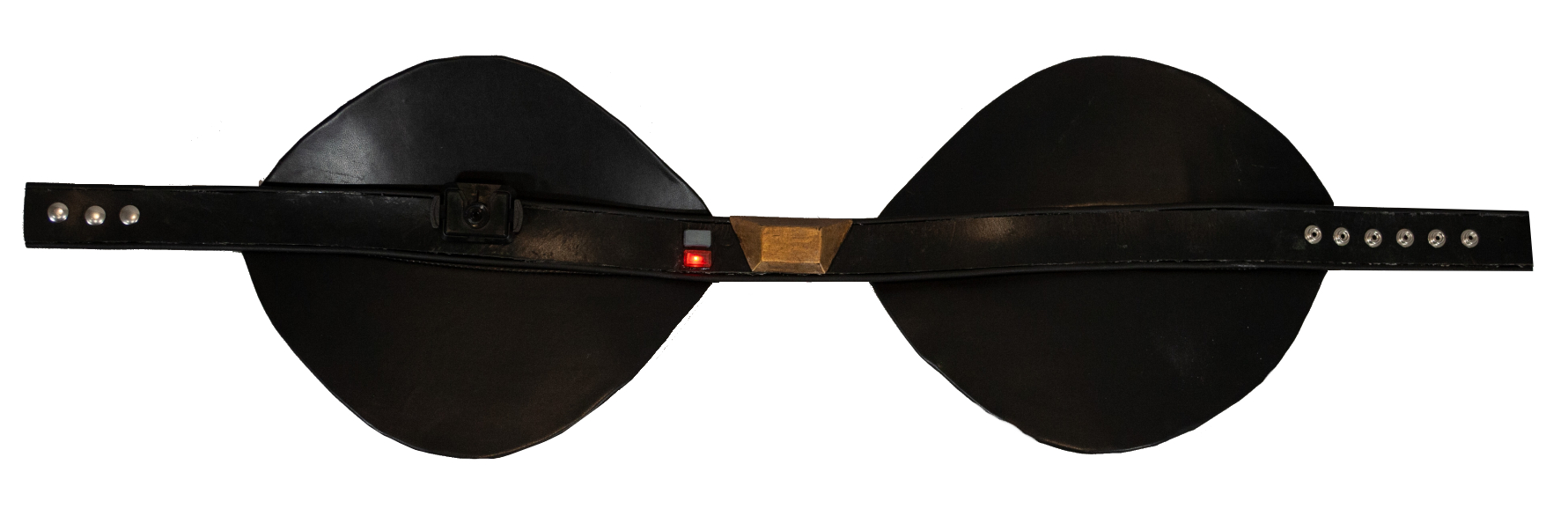

• The belt is made from black leather or leather-like material.
• The belt is approximately 1½"–1¾" in width and is proportionate to the wearer.
• The top and bottom of the belt are finished with piping.
• There is a heavily worn silver buckle on the center of the belt.
• Two button greeblies on left side (when facing belt). Top button is grey. Bottom button is red.
• Lightsaber clip attached on right side of belt

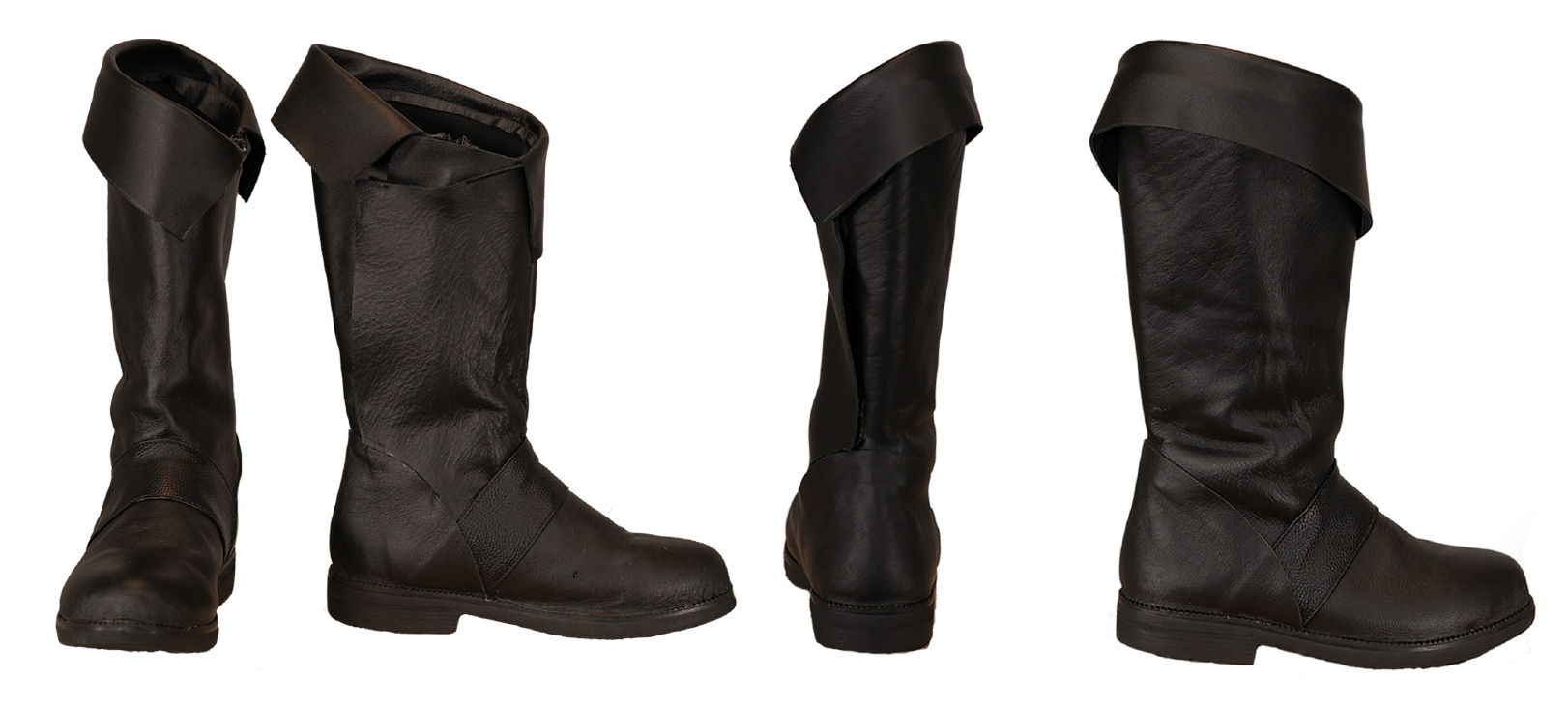

• The boots are made from a leather or leather-like material.
• There is no visible zipper.
• There is an asymmetric top which is higher on the outside edge which is folded over the cuff at the top.
• Boots have a thick sole and a moderate heel.

Optional Accessories

Items below are optional costume accessories. These items are not required for approval, but if present appear as described below. If adding in an accessory after initial approval, the item still needs to be submitted to local GML for approval before use.

• Inquisitor-style saber matching references with folding ring design.
• Ring is folded down in a half-circle design when lightsaber is on the belt or in use with a single blade.
• Ring is folded out in a full-circle design when the lightsaber is in use with a double blade.
• Ring “blades” are shaped according to the visual reference.
• Each ring has two protrusions on the center external side, and an angled divot on the internal side.
• Silver portions of the hilt are a weathered silver, following the visual reference.
• There are four red bars on both sides of the hilt (front and back):
• One short bar and one long bar mirrored pair near each emitter.
• If blades are used, they are red.
